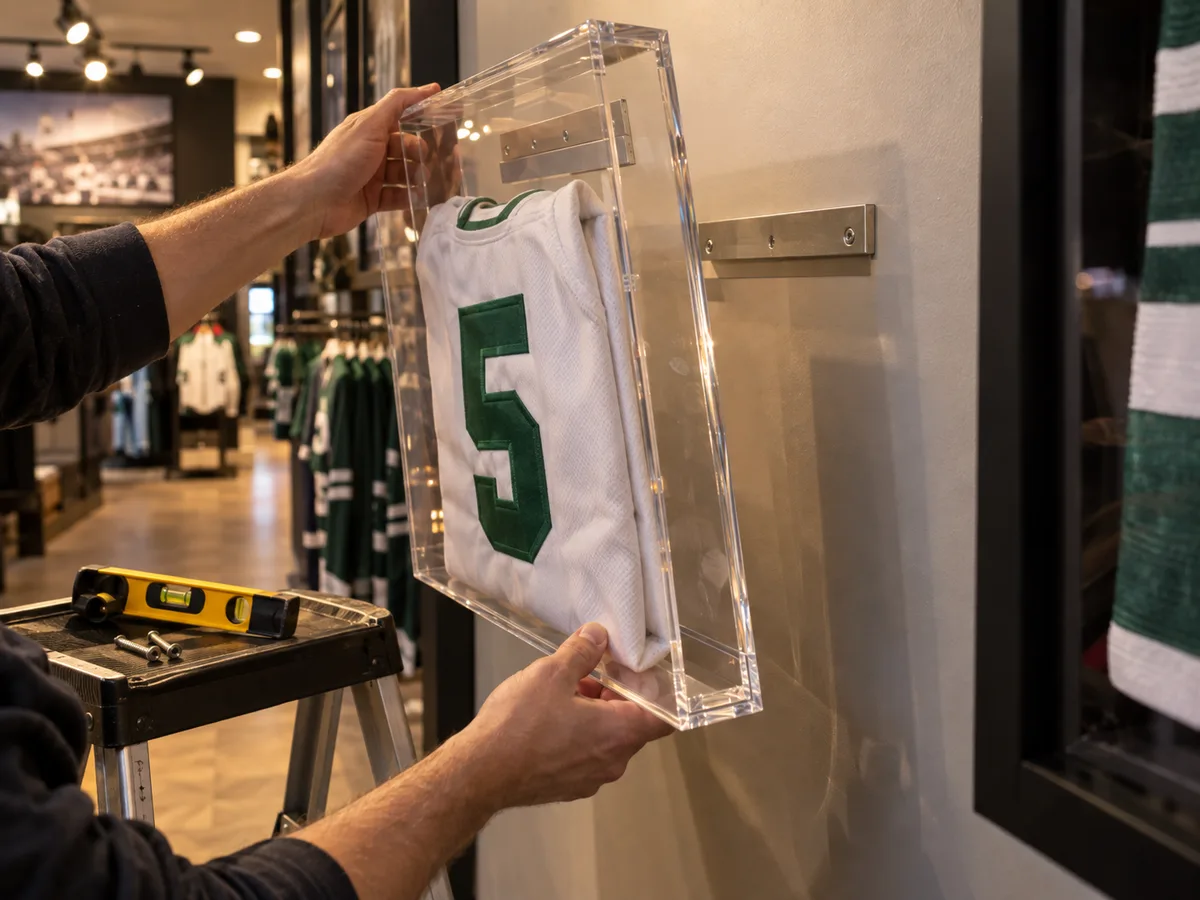

French Cleat
Two interlocking 45° rails; the case lifts off cleanly, hardware hidden behind. Self-leveling. Most popular for retail and museum. Load: up to 120 lb (two-stud span). Walls: drywall (with anchors), brick, concrete.

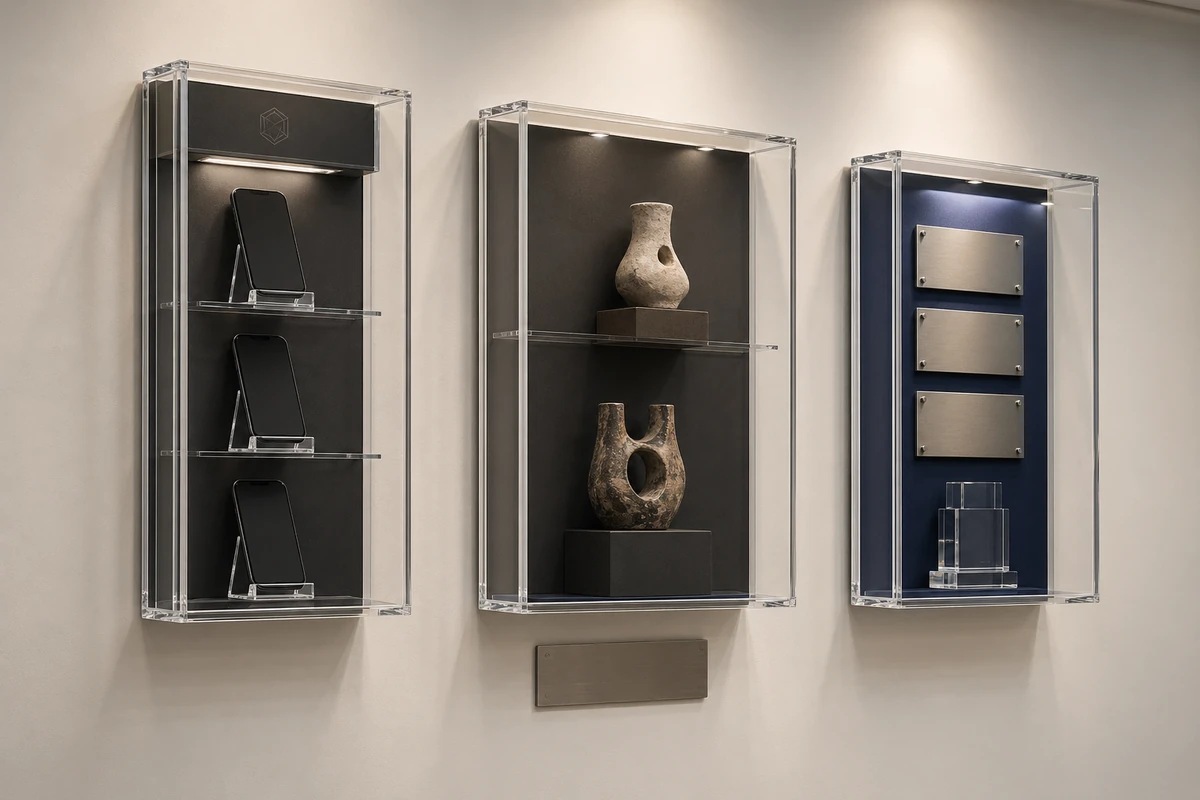

Wall Mounted Acrylic Display Cases
Wall cases built for the wall, not adapted to it, for retailers, museums, brand walls and trophy walls, from 100 pieces per design.
Factory-direct since 2008 · ISO 9001 Certified
Get a Wall-Mounted Case Quote

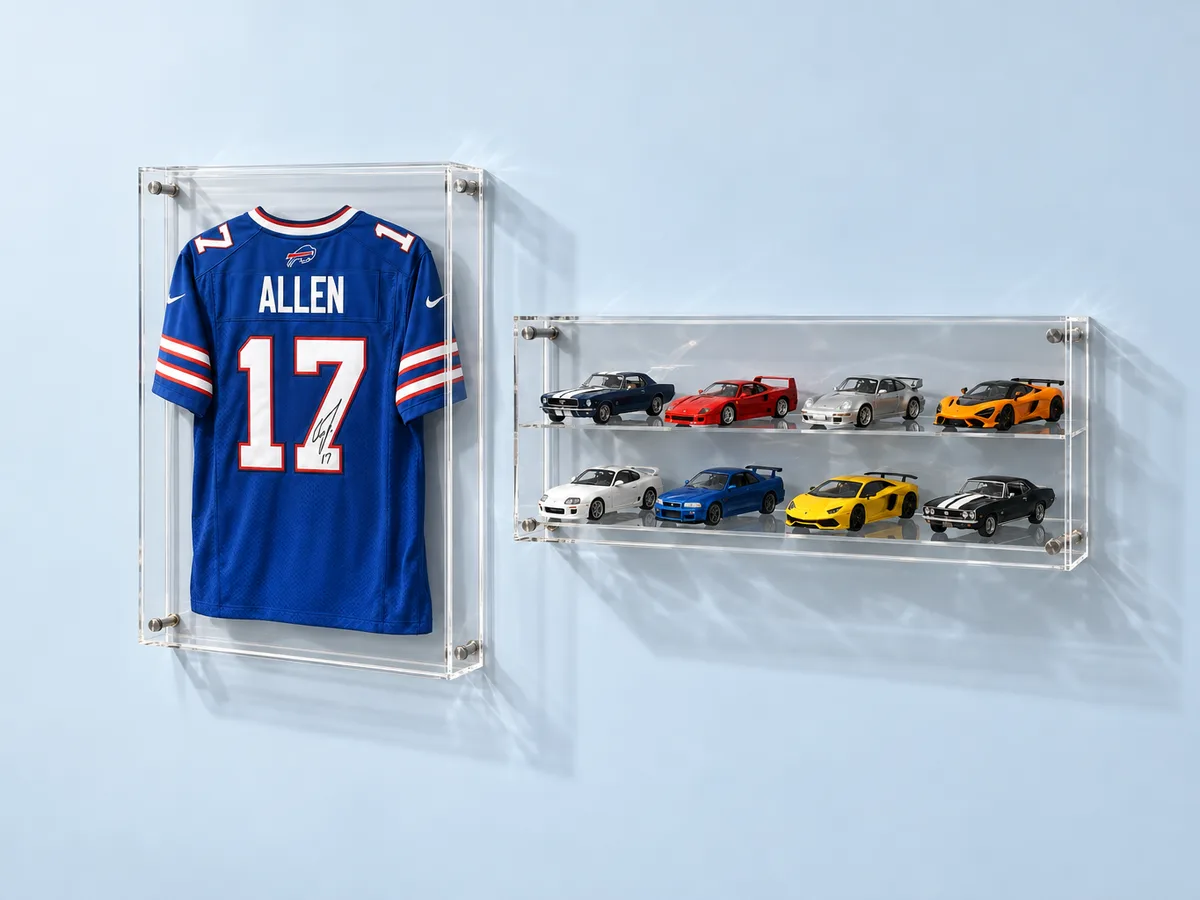

A wall mounted acrylic display case is an enclosed clear or tinted case built for a retail wall, gallery, or collection. Wetop selects the mount system from the wall type, finished weight, and access needs. French cleats, Z-clips, standoffs, through-bolts, concealed pins, and floating brackets are available. Matched mounting hardware and wall anchors ship with each case; lockable doors, UV-filtering acrylic, and LED lighting built to your lighting spec are options.
- Material
- Custom acrylic, grade by project
100
MOQ (pcs)
3-5d
Sample lead time
15-20d
Production lead time
24h
Quote response
Paid samples cost US$200–500 per design and are never credited to the order; production runs from 100 pcs per design.
Wall-mount systems
Built to the measured item and approved drawing.
Z-Clip
Slim aluminum Z-rails, like a cleat with a lower profile. Sits closer to the wall. Hidden, self-leveling. Load: up to 60 lb per pair. Walls: drywall, plywood backing, metal stud.

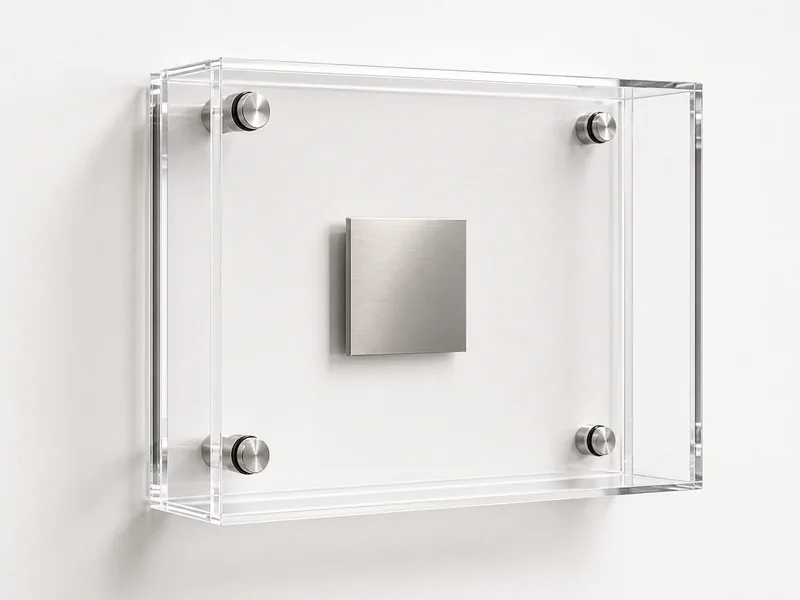

Standoff Bolt
Visible chrome or stainless barrels hold the case 12–25 mm off the wall. Hardware is part of the design. Load: 35 lb per bolt, four bolts standard. Walls: drywall (with anchors), brick, concrete.

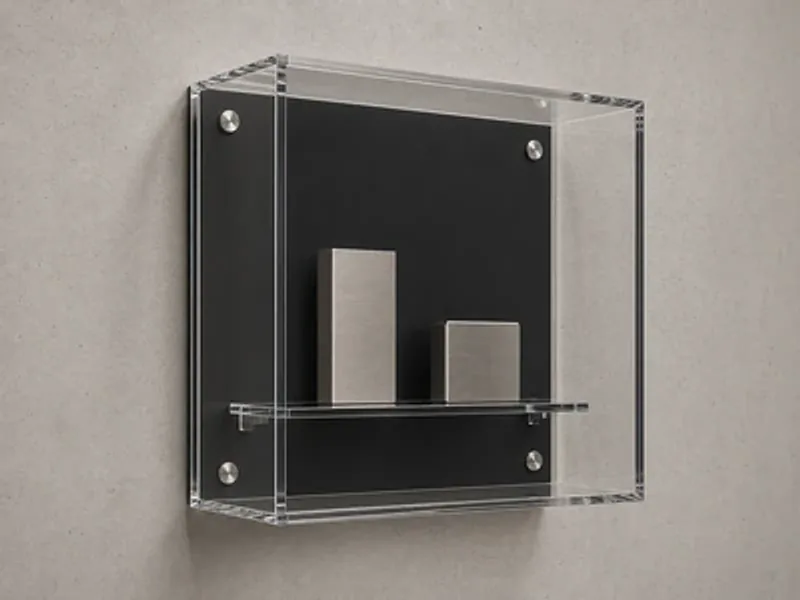

Through-Bolt
Bolts pass through the backboard into the wall, for heavy cases (multi-bay trophy walls, deep brand-experience installs, large museum cases). Load: up to 200 lb (reinforced backboard). Walls: stud or masonry only.

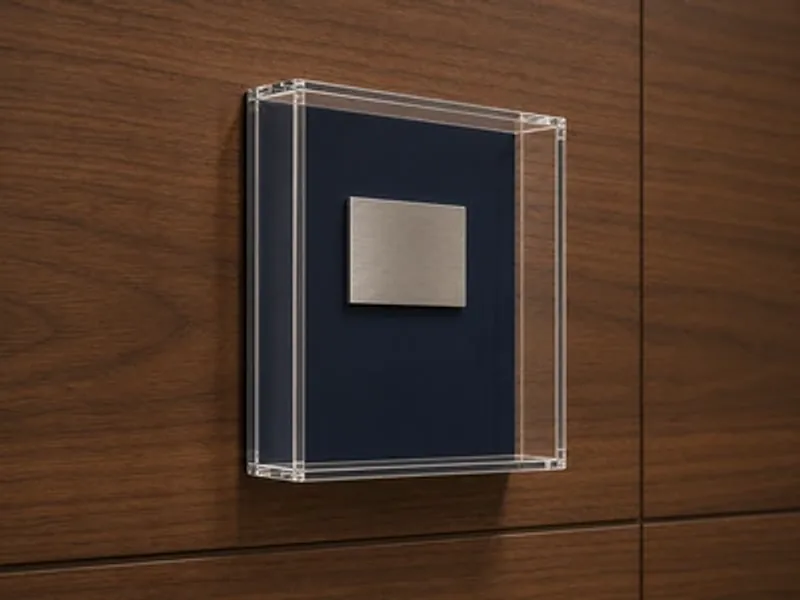

Concealed Pin
Steel pins set into the wall slot into the backboard; looks floating from the side. Load: up to 25 lb. Walls: stud or masonry preferred.
Floating (Hidden Bracket)
Internal aluminum keyhole bracket bonded to the backboard; no visible hardware from any angle. Load: up to 40 lb. Walls: stud preferred; toggle anchor for drywall.
Load values are reference figures only — actual capacity depends on case size, acrylic thickness, mount hardware and your wall; we confirm the bracket and fastener spec at sample stage.
Build options
Choose the specification that fits the object, access, and installation.
What affects the price?
Pricing is driven by acrylic thickness, UV-filtering vs standard clear, the mount system (through-bolt and floating cost more than French cleat), lockable vs non-locking, and order quantity. A slim 50 mm flat-front retail case with French cleat and clear acrylic costs significantly less than a deep 200 mm museum case with UV-filtering acrylic, fabric-wrapped backboard, LED top lighting, and lockable hinge.
Send the measured item, drawing, quantity and destination for an exact per-unit quote. We respond within 24 hours.
Request a per-unit quote- Dimensions and thickness
- Material grade
- Access or mounting
- Finish and branding
- Quantity and packing
Delivered project
500 wall-mount jersey frames delivered in 18 days
A US home decor brand ordered 500 wall-mounted jersey shadow box frames — 30 × 40 cm, 5 cm deep, diamond-polished, with wall-mount hardware — delivered in 18 days. For a retail wall fixture, see the pearlescent wall display.
- 500 units
- 30 × 40 cm, 5 cm deep
- Wall-mount hardware included
- Delivered in 18 days
What wall-case buyers say
“Wetop got the French cleat tolerance right on the first sample. Our installers were able to put up 200 cases across 14 stores without re-shimming a single one.”
Frequently Asked Questions
How are your wall mounted acrylic display cases mounted?
We offer six standard wall-mount systems: French cleat, Z-clip, standoff bolt, through-bolt, concealed pin, and floating (hidden bracket). The right system depends on case weight, wall type, and whether the hardware should be visible. French cleats and Z-clips are the most common — they hide all hardware behind the case, level the case automatically, and let the case lift off cleanly for cleaning or content swaps. Every wall-mount case ships with the matching mounting hardware and an installation diagram.
Will the case work on drywall without studs?
Yes, with the right anchors. Cases up to about 12 lbs (5.5 kg) mount safely into standard 1/2 inch drywall using toggle bolts or self-drilling drywall anchors — we ship these in the kit when buyers tell us the wall type. For cases above 12 lbs, we recommend hitting a stud or using a French cleat that spans two studs. For brick, concrete, or metal stud walls we ship masonry sleeve anchors or self-drilling metal anchors instead. Tell us your wall type during quoting and the right hardware ships with the case.
What is the maximum weight your wall mount supports?
Reference values only — actual capacity depends on case size, acrylic thickness, mount hardware spec, and the wall material at your install site. As a starting point: French cleat and Z-clip systems engineered for ~60 lbs (27 kg) per case into a single stud, or ~120 lbs (54 kg) when the cleat spans two studs. Standoff bolts engineered around ~35 lbs (16 kg) per bolt with four bolts per case. For heavier loads — large multi-bay corporate trophy walls, deep brand-experience cases, or museum cases above 100 lbs total weight — we engineer reinforced backboards and through-bolt mounting. Send us the case dimensions, contents weight, and the wall type (drywall / brick / concrete / metal stud) and we confirm the bracket and fastener spec at sample stage.
Do you provide installation hardware with the case?
Yes. Every wall-mounted acrylic display case ships with the matching mounting hardware — French cleat or Z-clip rails, drywall anchors or masonry sleeves based on the wall type you specify, screws, washers, and a printed installation diagram. Standoff and through-bolt hardware is also included when those systems are selected. The only thing you supply is the drill and a level. If you need a wall template printed at scale, ask us during quoting and we include it.
Can the case be locked?
Yes. We offer three lock options on wall-mounted cases: a keyed cam-lock on the hinged front door (most common for retail and museum installs), a tamper-evident security seal on lift-off lids (low-cost option for corporate trophy walls and gallery installs), and a hidden magnetic catch with a release key (used when the lock should be invisible). Cam-locks are keyed alike across a single order by default, so one key opens every case in your installation — useful for retailers managing 50+ wall fixtures.
What is the deepest wall mounted display case you build?
Our standard wall-mount depth range is 50 mm (slim front-loading cases for posters, photos, and flat retail merchandise) up to 200 mm (deep cases for sculptures, three-dimensional retail SKUs, and museum artifacts). We have built one-off cases up to 300 mm deep with reinforced French cleat backboards, but anything above 200 mm starts to look more like a wall cabinet than a display case — at that point we usually recommend a floor-standing tower instead. Tell us the deepest item you need to display and we recommend a depth that flatters the piece without dominating the wall.
Do you build wall-mount cases for sports memorabilia (jerseys, helmets, balls)?
Yes — but sports memorabilia is its own product page with sport-specific sizing tables, COA-display options, and authentication-house workflows. See sports memorabilia display cases. This page focuses on B2B retail merchandising, museum, brand-experience, and corporate trophy wall installs. If you need a fabric-backed personal keepsake frame instead — wedding, retirement, military service, family memorial — see acrylic shadow boxes.
Are you a factory, or a trading company sourcing the cases and the mount hardware separately?
A factory, and the mount hardware is specified as part of the case rather than bought loose afterward. Wetop has manufactured in Shenzhen since 2008 — today a 5,000 m² ISO 9001 certified plant, with 65+ people on the floor. The backboard, the cleat or clip rails, and the anchor set for your wall type are matched to each other here, and the case gets 100% inspection against your approved sample before packing. On a wall install that pairing is the whole job — a case that arrives with the wrong anchors for a brick wall is a store visit nobody budgeted for.
Our stores don't all have the same walls. How does the hardware work across a rollout?
Give us the count by wall type at quoting and the matching anchors ship with the order — toggle bolts or self-drilling anchors for standard drywall, masonry sleeve anchors for brick and concrete, self-drilling metal anchors for metal stud. The kit itself is the same otherwise: cleat or clip rails, screws, washers, and a printed installation diagram, with standoff or through-bolt hardware included when those systems are selected. Two things make a mixed-wall rollout easier. First, weight decides more than wall material does — a case up to about 12 lbs (5.5 kg) mounts safely into 1/2 inch drywall on toggle bolts, and above that you want a stud, or a French cleat spanning two studs, which is also the most forgiving system when a store's wall type isn't confirmed at PO time. Second, ask us for the wall template printed at scale during quoting — it turns each store install into marking and drilling rather than measuring. Cam-locks are keyed alike across an order by default, so one key covers the whole fleet.
Have a Wall Display Case Project? Let's Quote It.
Send us your wall type, case dimensions, contents, and quantity. Tell us if you need a lockable door, UV-filtering acrylic, or specific mount hardware. We respond within 24 hours with a detailed quote covering construction, mount system, finishing, and timeline. No commitment required. Sample before you commit to production.
