Stackable Acrylic Boxes: How to Stack Them Safely

Three interlock systems, one load rule

Stackable acrylic boxes interlock one of three ways: lug-and-recess (machined pads on each lid register into the base of the box above — locks in both horizontal axes), lipped lid (a raised rim resists sliding but nothing locks vertically), or sleeve (each box nests over the one below for a frameless column). Lug-and-recess is the retail standard; lips are the budget option; sleeves cost the most machining and look the cleanest.

Everything else in a stacking spec follows from one fact: the bottom box carries the entire column. A stack is a structure, and the load path runs down through the walls and bonded joints of every tier below the load. That is why stackable acrylic boxes are a manufacturing topic and not just a lid style — the interlock geometry, the wall thickness, and the number of tiers have to be designed together, and this guide works through each in turn.

Two boundary notes before the detail, because this keyword sits near two different pages of ours. If what you are stacking is lidded food-service trays, that is the trays pillar, not the boxes pillar — our serving tray with lid spec guide owns stackable tray configurations. And if the box’s job is gifting rather than storage or display, sizing and presentation live in the acrylic gift box size guide — and for what a gifting program looks like at production scale, our acrylic gift box boutique rollout case study walks a multi-store program from spec to reorder. This page owns the stacking engineering itself.

---

Lug-and-recess: the retail standard

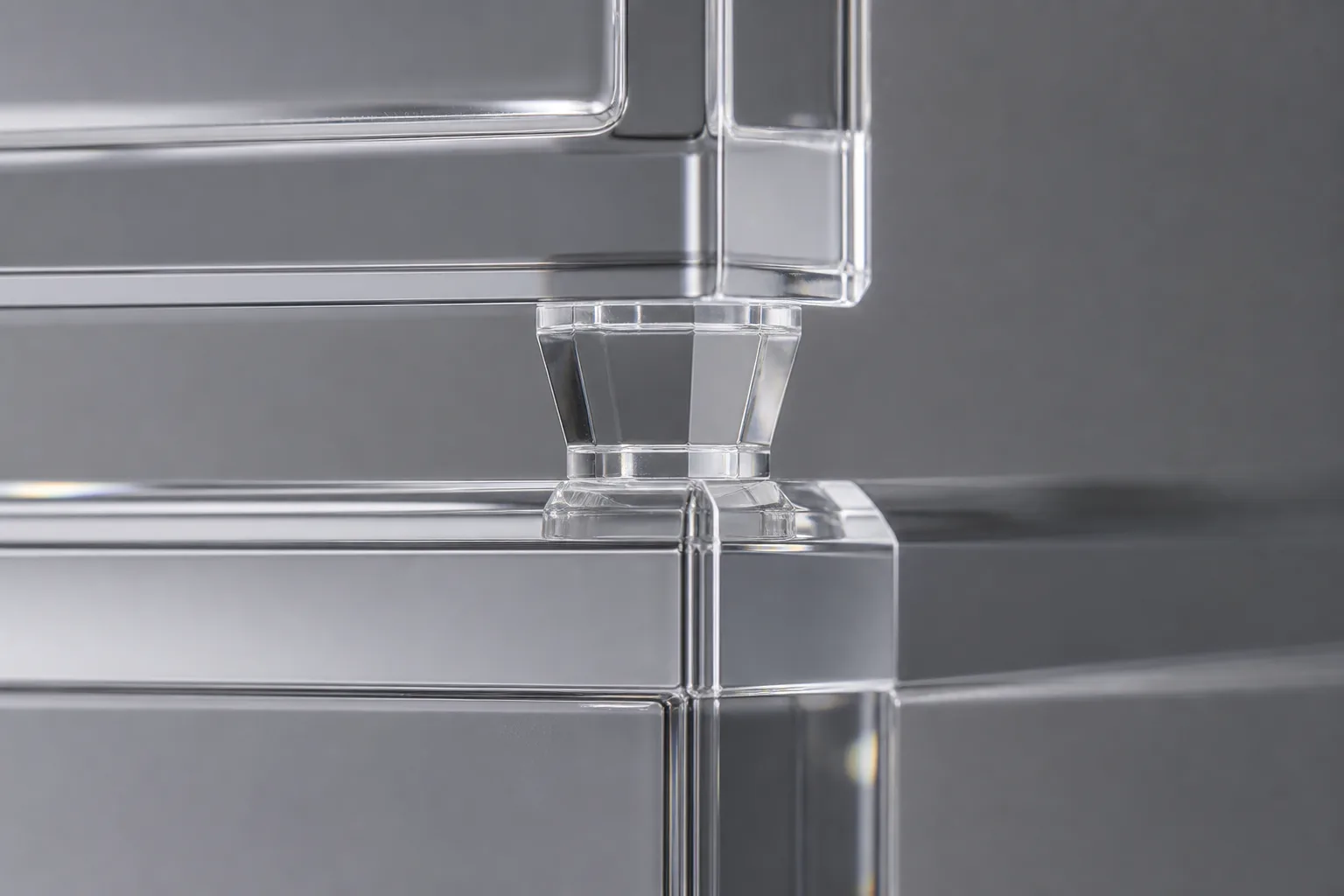

A lug-and-recess system machines small pads — the stacking lugs — onto the top face of each lid, matched to a recess or footprint relief cut into the base of the box above. Seated, the boxes register positively in both horizontal directions: the stack cannot shear sideways, and each tier sits centered on the one below automatically.

On our lines the lugs are CNC-machined and solvent-bonded, or milled directly into a thicker lid, with a working engagement of 2-3 mm — enough to lock, shallow enough to lift free without levering. The detail that separates a good system from an annoying one is the lead-in: a small chamfer on each lug lets the box above self-center as it lowers, so restacking is a drop, not an alignment exercise. Four corner lugs suit boxes up to about 300 mm; longer retail bins get a continuous rail along each edge, which spreads the standing load into the lid instead of concentrating it at four points.

Lug placement is also where the load path is decided. Lugs positioned directly over the wall lines send the column’s weight down through the walls — the strong route. Lugs placed inboard on an unsupported lid span send it through the lid panel, which is how a clear lid develops a slow bow under a loaded tier. When we review an incoming stacking design, lug-over-wall is the first item on the drawing review, because it costs nothing to get right and cannot be fixed after bonding.

---

Lipped lids and sleeves: cheaper below, cleaner above

A lipped lid is the minimum viable interlock: the lid’s rim stands a few millimeters proud, and the box above sits inside that fence. It resists sliding — enough for a closet organizer or a two-tier counter display — but nothing locks vertically, so a knock lifts the upper box over the lip. A sleeve system inverts the idea: each box’s walls extend below its floor, nesting over a machined shoulder on the box beneath, so the joint disappears and the column reads as one piece.

The trade-offs are honest and mostly economic. Lips add almost nothing to fabrication cost because the lid rim is already part of the bonded build; they suit light contents, short stacks, and settings where the stack is decorative rather than structural. Sleeves are the opposite: the overlap has to be machined to a close running fit — a fraction of a millimeter per side — on all four walls, which is real CNC time, and the payoff is purely visual: a frameless tower for boutique retail and display work that photographs like a single cabinet.

There is one structural bonus in the sleeve’s favor: because the overlap wraps the tier below, a sleeve stack resists toppling better than its looks suggest, with each joint acting like a short collar. But the collar also traps tolerance — if the boxes are even slightly out of square, the third tier binds. Sleeves are the one system where I insist the sample stage tests three units together, not two: two boxes hide a squareness error that three reveal.

---

Load per tier: the conservative math

The load question has a short honest answer: the material is rarely the limit — the joints, the buckling length, and time are. Cast acrylic is a stiff plastic, with an elastic modulus of about 3.2 GPa and a density of about 1.2 g/cm³, but it creeps: hold a sustained load on a panel for months and it slowly deforms in a way a short test never shows.¹

So the working numbers we quote are deliberately conservative, and I would rather publish the reasoning than a heroic figure. Density first, because it sets the standing weight: a 300 × 300 × 150 mm box in 3 mm sheet uses roughly 0.36 m² of acrylic and weighs about 1.3 kg empty — so three empty tiers already stand 4 kg on the bottom box before any contents. Contents next: as working guidance, we design around roughly 2 kg of contents per box at 3 mm walls, 4 kg at 4 mm, and 6 kg at 5 mm, with the stack capped at three to five tiers by footprint. Those are design defaults, not tested ratings — every real quote gets checked against its own geometry, and anything heavy (mineral specimens, canned retail goods, metal parts) gets walls one step thicker than the table suggests.

Why so cautious when acrylic’s paper strength is high? Because a stack fails at its details. Bonded joints carry the load across every corner; a tall thin wall under compression buckles long before the material crushes; and creep means a marginal design that survives the photo shoot bows by month six. Transport is the other quiet driver — a carton of stacked, loaded boxes sees compression and vibration in transit that the shelf never applies, which is what simulation protocols like ASTM D4169 exist to model, and it is why shipped-loaded stacking designs get the conservative end of every range.²

---

Wall thickness versus stack height

Wall thickness follows stack height, not box size. A box that is perfectly served by 3 mm walls alone needs 4-5 mm the moment your brief says “three loaded tiers,” because the bottom unit’s walls become columns and its joints become the load path for everything above.

Wall thickness	Box footprint (longest side)	Suggested max loaded tiers	Contents per box (working guidance)
3 mm	up to 200 mm	3	up to ~2 kg
4 mm	up to 300 mm	4	up to ~4 kg
5 mm	up to 400 mm	5	up to ~6 kg
8 mm	over 400 mm	5-6	up to ~10 kg

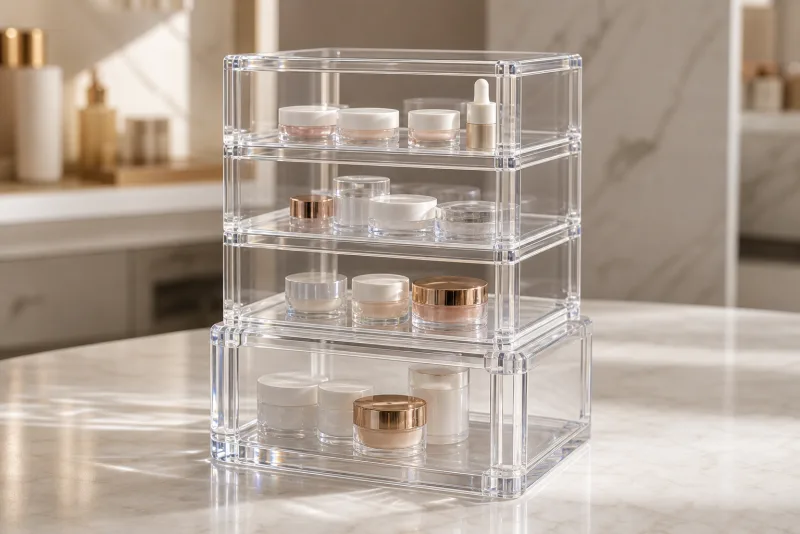

Read the table from the bottom box’s point of view, and treat it as the conservative starting point it is — real quotes get engineered per design. Three refinements we apply constantly: first, mixed-gauge stacks are the value play — a 5 mm base tier under 3 mm upper tiers puts the material where the load is and saves cost and weight everywhere else. Second, height matters as much as weight: tall tiers mean long unsupported wall panels, which buckle sooner, so a 250 mm-tall tier may need the next gauge up even under modest load. Third, the lid is part of the structure in a lug system — a lid that carries lugs over an open span needs its own thickness check, not just the walls. The deeper dimensioning logic — spans, deflection, and when to step gauges — is worked through in our acrylic box wall thickness guide.

---

Retail bin versus home organizer: two different stacks

The same stackable acrylic boxes brief splits into two products once you ask how often the stack is opened. A retail bin stack is loaded once and stands untouched for months: it wants deeper lugs, thicker walls, and a spec driven by standing load and transport. A home or studio organizer is restacked weekly: it wants shallow easy-release lugs, lighter walls, and a price per tier that invites buying more tiers.

For retail programs — counter bins, bulk displays, backroom stock that doubles as display — spec toward the structural end: continuous lug rails, a 4-5 mm base tier, and dimensions coordinated with the shelf or counter your stack lives on. The buyer is a store planner, the stack is furniture, and nobody should ever need to open tier two in a hurry. For the modular acrylic organizer market — cosmetics, stationery, craft supplies, collectibles — the physics relaxes and the ergonomics take over: shallower 1.5-2 mm lug engagement so one hand can lift a tier, lighter gauges because contents are light, and consistent footprints across sizes so a half-height tier and a full-height tier stack interchangeably. That footprint discipline is the whole trick of a modular system, and it is a drawing decision that costs nothing at CNC time.

If daily access matters more than modularity, the answer may not be a stack at all — a drawer unit keeps every level reachable, and our drawer organizer formats cover that pattern; the hybrid we build most often is a drawer base tier under two or three stacked display tiers, which is how the cosmetics program in our cosmetics drawer organizer case study resolved the same tension.

---

When stacking forces thicker walls than the box needs

The most common surprise on a stacking quote is that the stack, not the box, sets the gauge. A 180 mm cosmetics cube is structurally comfortable at 2-3 mm on its own; the same cube as the base of a four-tier loaded column moves to 4 mm, and the price moves with it. That is not upselling — it is the load path doing arithmetic.

The honest way to handle it is to decide your stack height first and let the gauge follow, rather than designing a beautiful single box and discovering the stack later. Three questions settle it: How many tiers will you realistically ever load at once? Does your stack ship pre-loaded (transport compression) or assemble on site? And is the bottom tier allowed to be visibly thicker — most buyers say yes once they see that a thicker base reads as a plinth, not a mismatch. Answer those three and the wall table above stops being a compromise and becomes the spec.

Where the extra gauge genuinely is not needed — short stacks, light contents, decorative columns — we say so on the quote and price the lighter build. A supplier who specs every stackable box at 8 mm is selling material, not engineering; the point of doing the math is being able to go thinner with a straight face when the numbers allow it.

---

Ordering a stacking system

A stackable order needs one decision a normal box order never asks: the interface spec. Name your system (lugs, lip, or sleeve), your maximum loaded tiers, the contents weight per tier, and whether the stack ships loaded — those four lines plus dimensions are a complete brief, and we return the gauge plan and quote from them.

The terms are the same as every custom build we run: MOQ 50 pieces per design, samples in 3-5 days, production in 15-20 days, FOB Shenzhen, 30% deposit with the balance before shipment, every unit inspected in our ISO 9001-certified factory. Lugs, recesses, and sleeve shoulders are CNC-machined, so there are zero tooling fees — a custom footprint or a mixed-gauge tier plan costs programming, not molds. One production note from 12+ years running these jobs: order two or three sample units, not one. A single sample proves the box; only a stack proves the interface — the lug engagement, the self-centering, the squareness — and that is the part you are actually buying.

Start from a clear acrylic box and add the stacking interface, browse the wider acrylic boxes hub and acrylic organizers ranges for base formats — or send us your stack brief with the four interface lines above, and we will respond within 24 hours.

Footnotes

1. Polymethylmethacrylate (PMMA, Acrylic) material properties — MakeItFrom — material database listing cast acrylic’s elastic modulus (3.2 GPa) and density (1.2 g/cm³), the two values behind the stiffness and standing-weight calculations in the load section. ↩

2. ASTM D4169 — Standard Practice for Performance Testing of Shipping Containers and Systems — the transport simulation protocol modeling compression and vibration in distribution, cited for why shipped-loaded stacking designs are specified conservatively. ↩
