Acrylic Display Cabinet: Doors, Locks, Shelf Load

Cabinet or case: the door is the dividing line

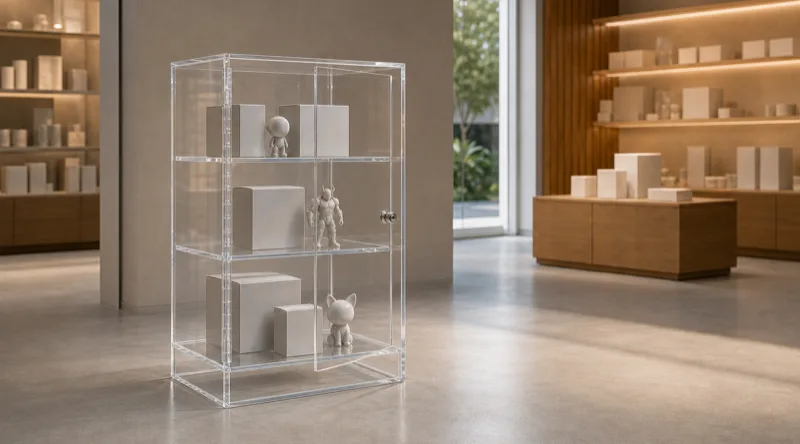

An acrylic display cabinet is an enclosed, door-fronted display unit built to be opened and restocked — retail or collection furniture with hinges or tracks, usually a lock, and internal shelves. An acrylic display case is protection first: a bonded box or lift-off cover you open rarely. The dividing line is a door that works for a living.

“Can we start with one cabinet, test it in the store, and add the other sizes if it sells?” A retail buyer asked us that, almost word for word, and versions of the same question have kept arriving since. I wrote this guide to answer it properly. Before any of the trial math, though, the vocabulary needs settling, because buyers use cabinet and case interchangeably and the two are quoted differently. A door means moving hardware: hinges or tracks, a closing edge that must meet the carcass cleanly after five thousand open-close cycles, and a lock that has something rigid to grab. A case has none of that — its cost lives in bonded seams and optical clarity instead.

So we quote from function, not from the word in the subject line. If the unit stays closed and exists to protect what is inside, you want a case — that work lives in our acrylic display cases range, and if the piece is museum-scale, the extra-large display case buyer guide covers oversized builds properly. If staff or collectors open the unit weekly, you are buying a cabinet, and the rest of this guide is about the three decisions that define one: the door, the lock, and the shelves.

---

When a custom cabinet beats a flat-pack retail cabinet

If a catalog flat-pack cabinet fits the product, the floor plan, and the lock requirement, buy the flat-pack — it will always be cheaper than custom. A custom acrylic display cabinet earns its price only when a spec is fixed and the catalog cannot meet it: footprint, shelf pitch, door type, lock hardware, or branding.

That is the honest fork, and I give it to buyers in first replies even when it costs us the order. The glass tower cabinets sold by big furniture retailers are genuinely good value for a home collection or a single shop corner. What they cannot do is hold a spec. The five triggers that move a buyer to custom, in the order we hear them:

Footprint. The cabinet must fit a counter end, an aisle gap, or a franchise floor plan measured in millimeters, not in whatever sizes the catalog stocks this season.

Shelf pitch. Flat-pack shelves sit where the holes are. If the product is 240 mm tall, a fixed 300 mm pitch wastes a fifth of the cabinet; custom pitch matches your merchandise.

Door and access. Catalog cabinets come with their door. Retail placement often demands the opposite one — a sliding front because the aisle is narrow, or a rear-access door because the cabinet faces a window.

Lock hardware. A real cam or showcase lock, keyed alike across thirty stores, is a program decision no flat-pack offers.

Branding. A UV-printed logo panel or a tinted brand color turns furniture into a fixture. This is where an acrylic display cabinet with doors becomes brand equipment rather than shelving.

There is also the material itself. Acrylic is roughly half the weight of glass at equal thickness and does not shatter into shards when a forklift or a customer wins an argument with it — which is why multi-store programs that ship fixtures between locations lean acrylic even when a glass cabinet sits cheaper on paper. One drawing, one factory, identical units in every store, replacement doors cut from the same program years later: that consistency is the actual product we sell. Behind ours sit 2,000+ shipped projects and an ISO 9001 factory running since 2008.

---

Hinged vs sliding doors: swing clearance decides

A hinged door opens the full front of the cabinet but needs floor clearance equal to its own width to swing. A sliding door needs zero swing clearance but covers half the front at all times. Measure the clear space in front of where the cabinet will stand; in most cabinet briefs we quote, that single measurement makes the decision — since founding Wetop in 2008, I have rarely seen the door question survive a tape measure.

The trade sits deeper than floor space, though. A hinged door closes against the carcass face with a slight overlap, which is why hinged cabinets seal against dust better — there is no open groove for it to travel through. Sliding panels ride in a double track, and that track is a dust channel by design; it also fills with grit in high-traffic retail and wants an occasional clean before the glide roughens. On the other hand, a sliding panel cannot be caught by a passing trolley, and in an aisle where a 450 mm swing is a hazard, that alone ends the discussion.

	Hinged doors	Sliding bypass panels
Swing clearance needed	Equal to door width (e.g. 450 mm)	None
Front access	Entire front opens at once	Half the front, one side at a time
Dust behavior	Door overlaps carcass — better seal	Track groove is an open channel
Lock pairing	Quarter-turn cam lock	Ratchet showcase lock
Typical placement	Open floor, showroom, collection room	Narrow aisle, behind a counter

Restocking habits deserve one honest sentence each. Visual merchandising teams dress a full front in one pass, so they resent sliding panels within a week. Grab-and-restock retail — reaching in for one boxed item — never notices the covered half. Ask the person who will open this acrylic display cabinet every day, not the person approving the drawing.

---

Lock hardware: cam, showcase, magnetic

Closure follows door type — that is the order to decide in, with the key plan second. A quarter-turn cam lock suits hinged doors; a ratchet showcase lock clamps through the overlap of sliding panels; a magnetic catch is for a door that should be held shut but not locked.

Cam locks are the hinged-door standard: a keyed cylinder through the door panel turns a metal cam behind the carcass edge, pulling the door tight as it locks. The cylinder needs a clean bore through the acrylic and a cam length matched to the door-to-carcass offset — details we cut into the program, not drill on site. For multi-store fleets, specify keyed-alike so one master opens every unit — the first upgrade I suggest on any fleet order; we set it at production time and it saves a locksmith later.

Showcase locks exist because sliding panels have nothing for a cam to grab. The ratchet type pushes a plunger through the overlap zone where the two panels cross, clamping them together so neither can slide; no drilling through the panel face is needed on the common styles, which also makes them the retrofit choice.

Magnetic catches hold a door closed against vibration and casual pull — closure, not security. Magnet strength is a sizing exercise: neodymium magnets are graded, and a higher grade holds the same weight from a physically smaller magnet¹, which is why a catch can hide in a 6 mm acrylic reveal. But any adult who pulls harder wins. If the inventory inside has street value, a magnet is not a lock.

This guide explains hardware choices for specification. For a locking commercial unit, see our lockable display case page. The pharmacy OTC locking display Manufacturing Case is a planning model in which the buyer approves the lock, access procedure, material, drawing, sample, inspection, and local requirements. It is not proof of retail durability or a delivered chain rollout.

---

Shelf load: span sets thickness, not the catalog

Acrylic shelf stiffness scales with thickness cubed and collapses with span cubed. Moving a shelf from 6 mm to 8 mm makes it roughly 2.4 times stiffer; doubling its span multiplies deflection about eight times. So the same 6 mm shelf that sits flat at 400 mm wide can sag visibly at 800 mm — the span, not the material, is what changed.

The material constants behind that arithmetic are published, not ours: cast acrylic’s flexural modulus runs 350,000-500,000 psi, roughly 2,400-3,450 MPa, measured per ASTM D790². Stiffness itself then comes from geometry — moment of inertia grows with the cube of thickness — which is why thickness is the lever that matters and why “make it 5 mm like the sample photo” is the most expensive cheap decision I see in cabinet specs. The full deflection formula, worked examples, and where the breakpoints fall are in our acrylic thickness and load math guide; for a cabinet RFQ, what we need from you is one number per shelf: the span and the weight it must carry.

Fixed versus adjustable is the other shelf decision. A bonded fixed shelf acts as a structural rib — it stiffens the whole carcass and carries more load at the same thickness, which is why tall cabinets want at least one. Adjustable shelves on pin holes give merchandising freedom, but each shelf spans free between pins, so they run a size thicker for the same load. Most cabinet builds mix the two: a fixed center shelf for structure, adjustable ones above and below for the seasonal reset.

---

One cabinet first: the economics of a trial unit

One custom acrylic display cabinet as a trial is a build we quote regularly — as a paid prototype, priced like a prototype. One-off economics are dominated by everything except the acrylic: programming and setup for cutting, polishing, hinge and lock fitting spread across a single unit, a wooden crate built for one, and freight billed by dimensional weight, under which carriers charge for the volume a package occupies when that exceeds its actual weight³. A cabinet is mostly enclosed air in a crate — dimensional weight almost always wins.

I spell this out early because the trial question usually arrives with a hopeful per-piece number attached, extrapolated from a bulk quote. The honest frame is different: the trial unit buys certainty — that the door clears the counter, the shelf pitch fits the product, the lock survives staff — before a program commits to it. Framed as certainty, the trial price reads fair. Framed against a 200-unit rate, it reads scandalous. Same number, two frames.

The mechanics on our side are simple. Samples ship in 3-5 days; a complex cabinet sits at the top of that window. Production runs 15-20 days at our 100-piece MOQ per design, with 30% deposit before production and the balance before shipment, FOB Shenzhen. And one request that makes the quote sharper: tell us the target size range and program volume even if it is provisional. A market-test batch quoted against a stated plan — one size now, three sizes at 100+ pieces each if the test sells — lets us quote the trial and the production tiers in one email, so you see the real per-piece curve before spending a dollar on the prototype. Every 100% inspection we run on a bulk order starts from the sample you approved, so the trial unit is not a side quest; it is the reference standard the production run will be checked against.

---

The checklist that prices a cabinet in one email

Most cabinet RFQs that reach us arrive as a reference photo and a sentence. A photo shows proportions; it cannot show dimensions, access direction, or what the lock must resist — so every missing item becomes an assumption inside the price. Ten items close the gap:

#	What we ask	Why it moves the quote
1	Quantity now + target program volume	Sets which price tier you see
2	Destination country	Freight, crating standard, and terms
3	Dimensions — state internal or external	8 mm walls eat 16 mm per axis; guessing wrong misfits the product or the floor slot
4	Placement: countertop, floor, wall	Base construction and thickness change
5	Front or rear access	Decides which face carries the door
6	Door type: hinged or sliding	Hardware, clearance, track machining
7	Lock, catch, or neither	Cam, showcase, magnet — or a clean edge
8	Shelf count + per-shelf load and span	Shelf thickness comes from this, not from a default
9	Material thickness and color	Clear, tinted, frosted; wall spec
10	Logo or print files, if branded	UV print setup enters the quote once, not as a surprise

Item 3 is where I have watched the most rework start, so it gets its own sentence: a cabinet quoted at “600 mm wide” from external dimensions has an interior of about 584 mm with 8 mm walls — and if your product tray is 590 mm, the cabinet is wrong before it is built. State which dimension is fixed and we hold that one.

Half-answered lists are welcome here. A photo plus four of the ten items is a real starting point, and anything you are genuinely undecided on can stay undecided — a quote with two door options priced side by side is a normal first reply. Send what you have through our quote form and we respond within 24 hours.

Footnotes

1. Magnet Grades — K&J Magnetics Blog — explains that pull force depends on size, shape, and magnetic circuit rather than grade alone, and that a higher grade lets a physically smaller magnet match a lower-grade one’s hold; cited for sizing magnetic catches in acrylic reveals. ↩

2. Cast acrylic flexural modulus 350,000-500,000 psi (about 2,400-3,450 MPa), measured per ASTM D790 — acrylic-PMMA property datasheet listing the modulus range behind the shelf stiffness math; stiffness then scales with geometry (thickness cubed), which is why span and thickness, not material grade, set shelf capacity. ↩

3. FAQ: How Do I Calculate Dimensional Weight? — eFulfillment Service — fulfillment-industry explainer of carrier dimensional-weight pricing, under which shipments bill by package volume when it exceeds actual weight — the reason a crated one-off cabinet’s freight line dwarfs its material cost. ↩
