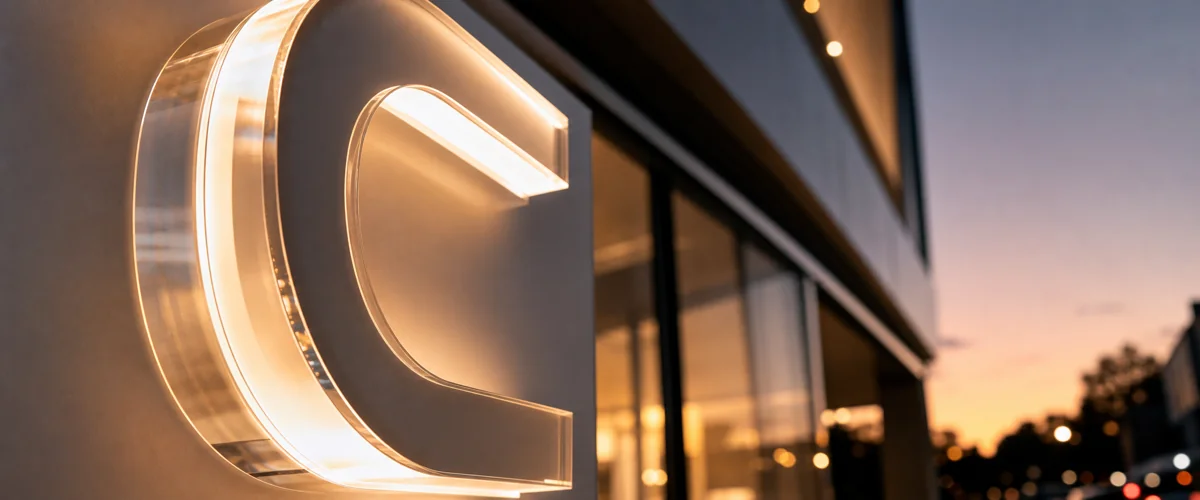

Cast Acrylic Sheets: Why Cast Wins for 3D Letter Signs

The face panel takes cast; the back can takes extruded

For the visible face panel of a 3D letter or channel letter, spec cast acrylic sheets. For the back panel, the structural can return, or any face panel sitting under a printed vinyl overlay, extruded is the right call and saves you 25–35% on that line item. For everything in between — side returns under 12mm, halo-lit faces, outdoor installations of any kind — default to cast and stop asking.

I’ve been running our laser, CNC, polishing, and UV printing lines since 2014, and across 1,500+ custom jobs the cast-versus-extruded decision hits hardest on signage work. On a flat display panel the difference is visible only to a trained eye. On a 3D letter sign — where you have a laser-cut perimeter, a line-bent side return, an LED behind it, and 12+ months of outdoor UV — the difference is the job. This guide walks the four places I see it on our production floor: the CO2 laser cut, the LED edge-light, the bend, and the lifecycle cost. If you want the broader material primer first, our cast vs extruded acrylic guide covers the chemistry without the signage-specific lens.

---

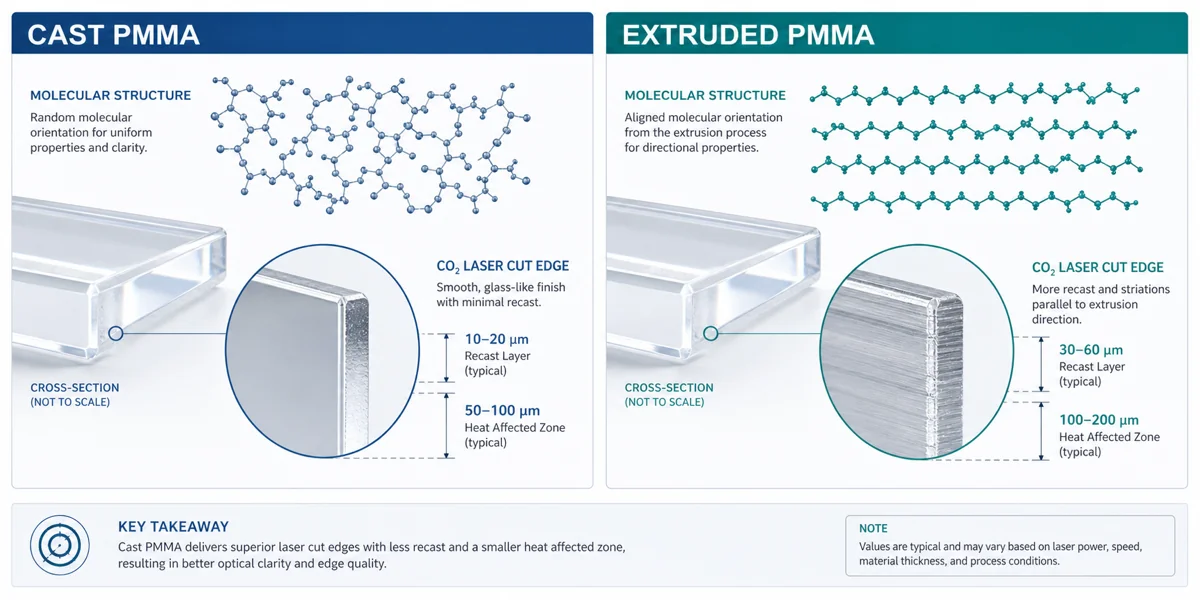

1. Cast vs extruded — the structural difference that drives everything downstream

Cast and extruded acrylic are chemically the same polymer — both PMMA — but the manufacturing process produces materially different sheet. Cast acrylic sheets are made by pouring liquid methyl methacrylate monomer between two polished glass plates with a gasket seal, then curing in a heated water bath for 24–48 hours. The slow polymerization yields polymer chains with molecular weight typically above 1,000,000 g/mol¹. Extruded acrylic is made by melting solid PMMA pellets at 250–280°C, forcing the molten polymer through a flat die, and pulling continuous sheet through chilled rollers. The heat-and-extrude cycle degrades polymer chains down to roughly 100,000–200,000 g/mol — about an order of magnitude shorter.

That molecular-weight gap is the single thing that drives every difference you’ll see on the signage floor. Longer polymer chains vaporize cleanly under a CO2 laser instead of charring. They absorb and hold UV stabilizer additives more uniformly. They tolerate line-bending without crazing along the bend axis. And they polymerize uniformly through the sheet thickness, which is why cast holds optical clarity above 6mm where extruded starts to look milky.

For 3D letter sign manufacturing specifically, three of those properties earn the cast premium back inside one production cycle:

1. Laser-cut edge quality on the visible face perimeter — the edge an LED is going to light up from inside.
2. UV stability on outdoor installations where the face panel sees direct sun for months.
3. Bend-radius tolerance on channel-letter side returns formed by line-bending.

The next four sections walk each one with the published material properties and the fabrication behavior we see on our floor.

---

2. CO2 laser cut quality — the micro-fracturing visible only on extruded

When a 6mm cast sheet runs through a CO2 laser, the edge comes off effectively flame-polished — a smooth, glossy cut face acceptable for a visible-edge 3D letter straight off the machine, with no secondary polishing, no flame pass, no buffing. This is a well-documented property of cast PMMA: material producers such as Röhm (PLEXIGLAS) and signage suppliers explicitly recommend cast for laser cutting because the polymer vaporizes cleanly along the cut path rather than melting and re-solidifying at the kerf. The laser does the polishing for you.

Run the same job on 6mm extruded and the edge comes off matte and micro-fractured — a network of fine thermal stress cracks running a fraction of a millimeter into the sheet, visible in raking light and visible the second an internal LED comes on at night. The cracks aren’t structural failures; the sheet still holds. They’re optical defects. Extruded’s shorter polymer chains and higher internal stress make it far more prone to this crazing at the heat-affected zone, which is why extruded is generally characterized as a poorer laser-cutting substrate for edge-visible work. On a 3D letter where the LED is positioned roughly 8–12mm behind a clear or tinted face, those cracks light up like fiber-optic threads. Buyers see them on install and the install team has nowhere to go.

The pattern holds across the 6mm and 10mm gauges signage shops actually buy: cast laser-cuts to a near-flame-polished edge; extruded laser-cuts to a matte, micro-fractured edge that has to be mechanically polished back to acceptable visible-edge quality — adding meaningful fabrication time per part. That polishing labor is what kills the budget logic of “we’ll save money by going extruded” — by the time the polisher has worked the perimeter of 200 letter blanks, you’ve spent the savings back.

For backer panels, internal structural parts, painted lightbox sides, and any panel sitting under a vinyl overlay, extruded is fine. The micro-fracture is hidden, the LED isn’t behind it, and the savings are real. We stock both grades on our floor and call out the per-part substitution on every quote where it makes sense — see our 3D acrylic letters case study for the build categories where we run mixed bills of material routinely.

---

3. LED edge-lighting clarity — why cast holds color longer

The second place the cast premium earns itself back is outdoor longevity. Cast acrylic is widely recognized as the more weather-stable of the two forms, and material producers back it up in their published grades: general-purpose cast PMMA is rated for roughly a decade of outdoor exposure with minimal loss of clarity and color, and producers such as Röhm (PLEXIGLAS) and Plaskolite publish outdoor-life and weatherability specs specifically for cast face stock. Color shift is characterized in the industry using delta-E in CIE Lab space, and the useful calibration points are: under delta-E 2, the shift is below what most observers can detect side-by-side; above 3, a trained eye sees it; above 5, an untrained customer notices — the range where white and pastel face panels read as yellowed.

Two mechanisms drive cast’s advantage. First, cast’s longer polymer chains are inherently more UV-resistant — the same chain length that gives you clean laser cuts also resists photo-oxidation. Second, cast picks up UV stabilizer additives uniformly because the additives blend into the liquid monomer before curing, where they distribute through the full sheet thickness. Extruded blends additives into the melt; the heat-and-extrude cycle can partially degrade them and the surface concentration ends up lower than the bulk. UV-stabilized extruded grades exist and they help, but the material-science literature and producer datasheets still put cast ahead on long-term color hold.

For a 5-year outdoor sign warranty — which most B2B signage buyers want and most US channel-letter installers offer — extruded on a visible face is a weathering risk. Cast acrylic sheets are the spec we put on every outdoor face panel that ships from our line. For a worked example of how this plays out on a real install, see our 3D acrylic letters dimensional logo signage case study. For interior signage programs — where ADA compliance and mounting consistency drive the build rather than weathering — see the 12-property boutique hotel wayfinding signage rollout.

---

4. Channel-letter formability — the bend-radius wall

The third place the difference matters is the side return of a channel letter — the strip of acrylic that wraps from the face down the side of the can. Most channel-letter designs ask for a 90° bend, formed by line-bending: heating a narrow strip of the acrylic with a strip heater (~150–170°C), folding to angle, and cooling under jig.

Cast and extruded both line-bend, but they have very different radius limits before the outer fiber crazes — a difference that comes straight from extruded’s higher residual internal stress and shorter chains. Forming guidance from acrylic producers and fabrication references puts the working limits roughly here:

• Cast acrylic, 6mm: clean bend at about 6–8× sheet thickness radius (i.e., ~36–48mm inner radius). Below that, the outer surface starts to show micro-crazing on close inspection but still passes most visible-edge applications.
• Extruded acrylic, 6mm: clean bend only at about 10–12× sheet thickness (~60–72mm inner radius). Below that, crazing appears on the outer fiber within minutes of cooling — fine stress lines running parallel to the bend axis. The crazing isn’t a structural failure but it’s an optical defect that an LED behind the side return will light up the same way it lights up laser micro-fractures.

What that means in practice: a channel-letter design with a tight 90° return (typical on smaller stroke widths and on serif fonts where the side return geometry runs into corners) fails in extruded before it fails in cast. We’ve watched buyers send us a drawing speccing extruded for cost, hit crazing on the corners once the returns are formed, and switch to cast for the side returns mid-job — which costs them more than just speccing cast upfront, because the production schedule slips while we resource the substitute material.

The rule we use on quotes: any side return under 12× thickness bend radius gets cast, no exceptions. Above 12× thickness — large block letters, low-stroke signage, simple geometric shapes — extruded is acceptable on the side returns and the cost saving is real.

---

5. Cost spread vs longevity — when extruded actually wins

Now the cost math, which is where buyers usually want to push back on the cast default. Here is how the two compare on standard 6mm clear sheet, 1220×2440mm gauge (the gauge most signage shops cut from). The material-property rows reflect published cast-vs-extruded characterization; the per-sheet cost row is our own FOB quote:

Property	Cast acrylic	Extruded acrylic	Note
Laser-cut edge quality	Near flame-polished	Matte, micro-fractured	Cast vaporizes cleanly; extruded crazes at the kerf
Outdoor color hold	Higher	Lower	Cast’s higher MW + uniform UV stabilizer
Line-bend min radius (× thickness)	~6–8×	~10–12×	Before outer-fiber crazing
Thickness tolerance	Looser (±10%)	Tighter (±5%)	Extruded’s one edge — good for vinyl lay-flat
Per-sheet cost (6mm 1220×2440mm)	$58–$72	$42–$54	Our FOB Shenzhen quote, mid-2025

On raw sheet, extruded saves roughly $15–$20 per sheet at 6mm — about 25–35% per square meter. On a 200-piece channel-letter program where each letter consumes about 0.4 m² of face material plus side returns, that’s ~$240–$320 in raw sheet across the whole job.

Then count what you spend back on extruded:

• Secondary edge polishing on the visible face perimeter: meaningful added fabrication time to mechanically polish the micro-fractured kerf back to a clean edge — on a 200-piece run, that labor eats a large share of the raw-sheet saving.
• Bend-radius restrictions that force you to either redesign with looser corners or substitute cast on side returns mid-job, adding change-order overhead.
• Outdoor warranty risk: if even a small fraction of the install set has to be replaced because of perceptible yellowing, the replacement cost (re-fabricate + air-freight + reinstall) overwhelms the original raw-sheet savings many times over.

So on outdoor 3D letter signage and on indoor visible-edge work, cast acrylic sheets win on lifecycle cost even though the raw material line item runs higher.

Where extruded actually wins on signage:

• Flat backer panels mounted behind the face — the part nobody sees through.
• Painted lightbox sides and tops where the surface treatment hides everything that matters about extruded’s optical properties.
• Internal structural blanks that carry the LED module or the mounting hardware.
• Thin (≤3mm) face panels behind a printed vinyl overlay — the vinyl is the visible surface, the acrylic is the carrier, and extruded’s tighter ±5% thickness tolerance is actually an asset for vinyl lay-flat.

For these parts we spec extruded explicitly on the bill of materials and the saving lands clean. The decision is part-by-part, not job-by-job — a single 3D letter program might run cast on the face panels, extruded on the back panels, and cast again on the side returns. We call it out per line item on every quote where it matters.

---

What this means for your next 3D letter sign RFQ

If you’re sourcing a 3D letter or channel-letter program, three things to put on the RFQ before it goes out:

1. Specify “cast acrylic sheets, 1,000,000+ g/mol molecular weight, brand-tier (Plaskolite / Evonik PLEXIGLAS / Mitsubishi / equivalent)” on the visible face panel and side returns. Generic “acrylic” gets you extruded by default, and the per-sheet saving doesn’t survive the laser line.
2. Require a mill cert per batch (most cast PMMA producers ship them; extruded relabeled as cast won’t have one to produce). The cert names the manufacturer, the batch, and the cast/extruded designation — it’s the only document that proves you got what you paid for. Industry sign specifications like the ANSI/UL 48 standard for electric signs² reference the material designation explicitly.
3. Get the bend-radius limit written into the quote for any channel-letter side returns. A competent fabricator will tell you the minimum inner radius they’ll hold without crazing — and will spec cast vs extruded per part on the bend strategy rather than picking a single material for the whole job.

We run cast and extruded side-by-side on our signage line and we tell buyers directly when extruded is the right call — flat backers, painted lightboxes, thin vinyl-overlay faces, internal structural parts. For everything else on a 3D letter sign, cast acrylic sheets are the spec we publish on the quote. Send the artwork, the depth, the install environment, and we’ll come back with cast vs extruded called out per part, the bend radius on your design, and the per-piece cost on each option — send the brief here and I’ll review it on the production-line side before the quote goes out.

For a sister product where cast acrylic’s invisible-bond-line property is the entire selling point, see our embedded logo blocks — two 15 mm cast layers solvent-bonded with a logo sandwiched between, where any extruded substitution shows the joint immediately under angled light.
