Acrylic Fabrication Techniques: 6 Factory Methods

What Acrylic Fabrication Techniques Actually Cover

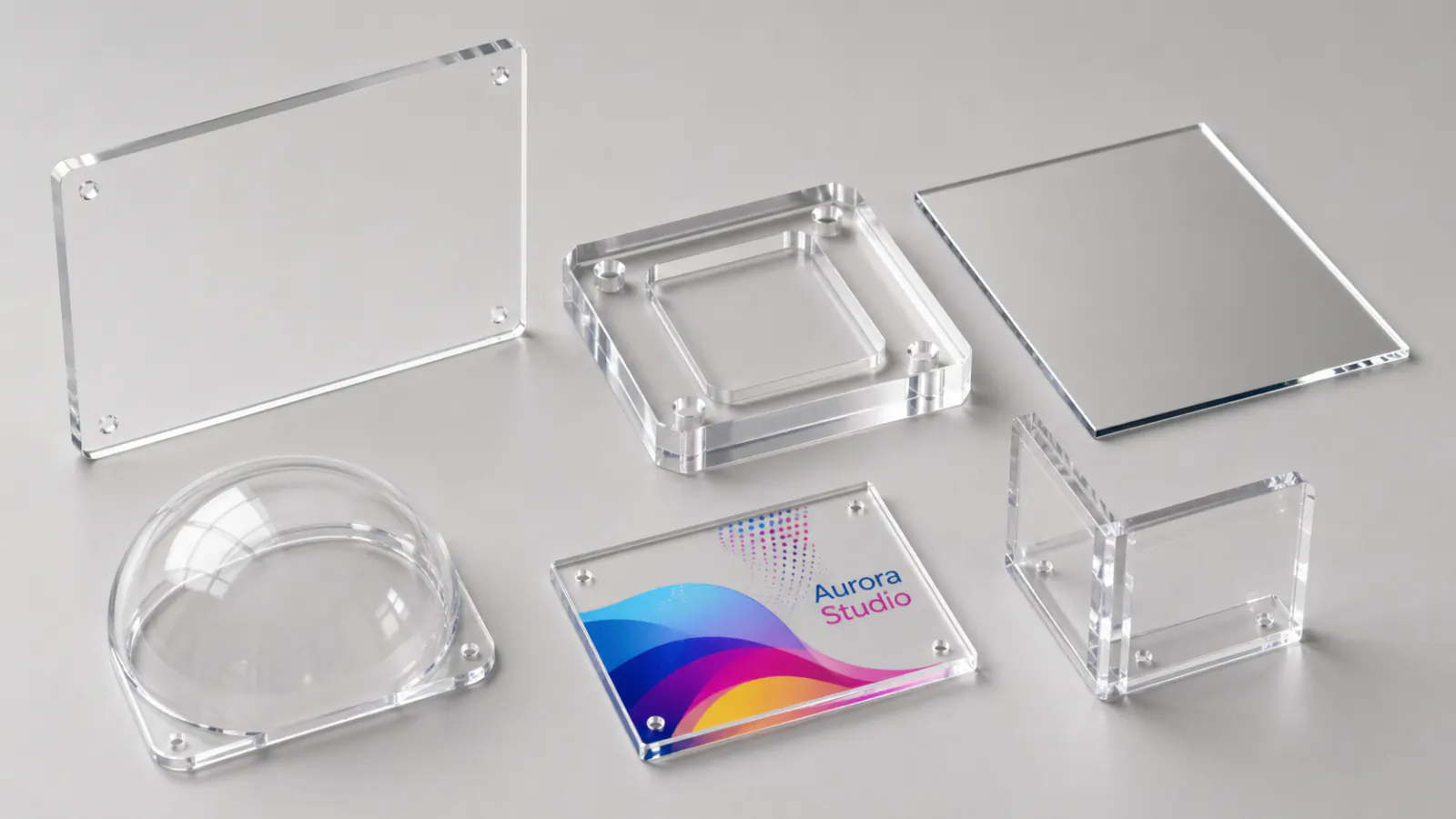

Acrylic fabrication techniques cut, shape, finish, decorate, and assemble acrylic. This guide groups them into laser cutting, CNC machining, edge polishing, bending and thermoforming, surface decoration, and assembly bonding. A drawing may use one process or combine several.

Suppliers can interpret a drawing differently when the RFQ says only “polished” or “printed.” One may quote flame polishing while another quotes diamond polishing; one may use screen printing while another proposes UV printing with a white underlayer. Ask each supplier to name the process by part so you can compare the same finish and approval route.

For the cornerstone overview of how all of this fits together on a real RFQ, see our acrylic fabrication and customization capabilities page. If you are still working out what acrylic fabrication actually is — definition, history, who buys it, how it differs from injection molding — start with what is acrylic fabrication before this technique catalog.

1. Laser Cutting

Laser cutting uses a CO2 beam to follow a programmed path through acrylic sheet. Edge condition depends on the named grade, thickness, power, speed, focus, gas flow, and maintenance. The quote should state whether the cut edge is acceptable as produced or needs a separate finish.

Laser cutting suits many 2D profiles, text cutouts, and decorative shapes. Capability and tolerance depend on the sheet, thickness, kerf, geometry, machine, and measurement method. The cast vs extruded acrylic guide explains why the named grade belongs in the specification.

A laser does not machine pockets, counterbores, or drawing-defined chamfers like a router. Thick-sheet capability and edge quality vary by machine and grade, so approve the cut edge rather than using one universal thickness limit.

Thickness, total cut length, pierces, nesting yield, and edge requirement drive laser cost. Compare laser and CNC on the same part when the sheet is thick or the edge needs machining and polishing.

Common buyer mistake: specifying “laser cut precision” without checking thickness — laser is precise on thin sheet, slow and stress-prone on thick stock. Match the technique to the gauge. For the deeper comparison, see our guide on CNC vs laser cutting acrylic; for what actually determines the edge finish you receive off the laser — power, speed, focus height, and the fire-polish window — see our CO2 laser cutting edge quality guide.

2. CNC Machining

CNC machining uses a rotating carbide or diamond bit on a 3-axis or 4-axis router to mechanically remove material from acrylic stock. Unlike laser cutting, CNC works in three dimensions: it routes 2D profiles, drills holes, mills pockets, cuts chamfers, counterbores, and machines compound features that a beam cannot reach. We run four CNC routers alongside the laser line — they share floor space because most orders use both.

CNC can machine profiles, pockets, chamfers, holes, counterbores, and assembly surfaces. Achievable tolerance depends on grade, thickness, geometry, fixturing, tool, thermal condition, and measurement method. ISO 286¹ provides a limits-and-fits system, but the drawing must state the project requirement and datum scheme.

What it cannot do: produce a polished cut edge directly. The carbide bit leaves a matte, slightly scored finish that requires flame or diamond polishing as a secondary step on visible edges. Extremely fine inside radii are limited by bit diameter — you cannot route a corner sharper than the radius of the smallest tool you can fit.

Toolpath length, tool changes, fixturing, passes, and inspection drive CNC cost. Ask which features add a new setup or tool so design revisions can target the relevant line item.

Common buyer mistake: specifying CNC on thin 5mm display panels because “CNC sounds premium.” On thin sheet with 2D profiles, CNC is slower than laser and leaves an edge that needs polishing — laser is the correct call. Match the operation to the geometry, not to the perceived prestige of the machine.

3. Edge Polishing

Edge polishing changes a cut edge to the approved visual and roughness target. Common routes include diamond polishing, flame polishing, and progressive sanding and buffing. Select the route from edge geometry, thickness, material grade, cleaning exposure, and sample.

Diamond polishing uses a CNC-controlled diamond cutter to skim 0.1-0.3mm off the edge mechanically, producing a glass-mirror finish without applying heat. Flame polishing uses a torch tuned to roughly 2,000 degrees C to melt and re-flow the surface — fast and cheap on thin cast acrylic, but introduces residual stress that can release as crazing when the edge contacts solvents. Sanded-and-buffed is a budget alternative that produces a slight milkiness no machine method shows; acceptable on hidden interior edges, not on premium visible faces.

Diamond and flame polishing have different geometry, thickness, heat, and stress constraints. Confirm the method against the named sheet and cleaner exposure. The diamond vs flame polishing guide covers the approval questions.

Polished edge length, method, geometry, setup, and acceptance criteria drive cost. Use a physical sample or a stated roughness and visual standard; ASME B46.1² is one reference for surface-texture terminology.

Common buyer mistake: writing “polished edges” on the RFQ with no method specified. That single phrase covers a 4x cost spread between hand-buffed and diamond-polished. Specify the method, or ask the fabricator to recommend one based on cleaning environment and finish target.

4. Bending and Thermoforming

Bending and thermoforming are the techniques that take flat acrylic sheet and reshape it into curves, angles, and 3D forms — the only category in this catalog that fundamentally changes the geometry of the stock. Three methods cover most production work: line-bending (heat a single line, fold), oven thermoforming (heat the whole sheet, drape over a mold), and vacuum forming (heat sheet, pull over a mold with vacuum suction).

Line bending heats a narrow strip and cools the sheet against an angle jig. Thermoforming heats a larger area before the sheet takes the form geometry, while vacuum forming adds pressure differential. Use the named sheet maker’s processing guidance to set temperature and cycle; one cast-acrylic reference publishes a forming range around 160-180 degrees C.³

The process can make folds, curved covers, formed lids, and other drawing-defined shapes. Thickness and draw capability depend on the sheet, heating system, tool, support, geometry, and approved sample.

Inside radius and draw depth affect thinning and stress. Review the formed thickness distribution and corner geometry on the sample rather than applying one universal radius multiplier.

Tool or form material, machining, heating cycle, trimming, quantity, and inspection drive forming cost. Ask the quote to separate the tool and compare formed construction with an assembly made from flat panels.

Common buyer mistake: assuming any 3D shape can be thermoformed. Compound curves with sharp corners and tight radii fight the physics — usually it is cheaper and cleaner to laser-cut flat panels and solvent-bond them at 90 degrees.

5. Printing and Surface Decoration

Surface decoration can use UV digital printing, screen printing, hot stamping, or laser engraving. Compare the artwork, color target, register, adhesion, exposure, and sample for the named material and process stack.

UV digital printing can place CMYK and white ink on acrylic; screen printing uses a separate screen for each spot color; hot stamping transfers foil with a heated die; laser engraving creates a recessed or frosted mark. Setup and per-piece cost depend on coverage, color count, artwork changes, pretreatment, and quantity. Approve durability against the intended exposure instead of assigning a universal service life.

UV printing suits multi-color graphics, screen printing suits controlled spot colors, hot stamping suits foil accents, and laser engraving suits recessed monochrome marks. Confirm capability and acceptance on the named material and sample. The UV printing guide covers the print stack; ASTM D3363⁴ is one coating-hardness test, while adhesion needs its own approved method.

Outdoor print performance depends on ink, pretreatment, topcoat, substrate, exposure, and acceptance criteria. Qualify the proposed stack with a relevant weathering plan, such as an agreed ASTM G154⁵ exposure, instead of assuming durability from the process name.

Cost driver: UV is per-square-inch of coverage; silk-screen is per-screen setup amortized across volume; hot stamping is per-die-strike; laser engraving is per-vector-length. Each has a different break-even crossover.

For outdoor signage, state the exposure, target service interval, cleaning method, and acceptable color change. Ask the supplier to recommend and test a complete print or engraving stack against those conditions.

6. Assembly Bonding

Assembly can use solvent welding, reactive adhesives, mechanical fasteners, or thermal methods. Joint visibility, load, chemical exposure, and service access determine the route.

Solvent welding softens mating acrylic surfaces so they join as the solvent leaves. Joint performance depends on material grade, edge preparation, fit, solvent system, cure, geometry, and load. Adhesive bonding uses a specified reactive adhesive; mechanical fasteners support serviceable assemblies. Approve the joint on the named material and follow the adhesive maker’s technical data rather than applying a generic strength percentage.

Solvent and reactive-adhesive joints can reduce visible hardware, while mechanical fasteners support disassembly. The drawing, safety requirements, datasheet, and sample decide whether a joint is structural or suitable for a regulated environment.

Contamination, coatings, residual stress, poor fit, and the wrong solvent or adhesive can weaken a joint or damage the surface. Mechanical fasteners remain visible unless the drawing conceals them.

Cost driver: joint count, joint length, and surface prep time. A 4-corner display case with 4 solvent-welded edges runs in minutes; a 12-panel multi-tier display with internal reinforcements is hours of fixture work.

Common buyer mistake: assuming every joint should be solvent-welded for the “premium” look. On an acrylic display case where the bottom panel needs to come off for refilling, mechanical fasteners are the correct call — the buyer just doesn’t see them when the case is closed.

How Acrylic Fabrication Techniques Combine on a Real Custom Order

The drawing sets the process sequence. A part may need several operations, and the quote should identify the stage, approval evidence, and cost driver for each one.

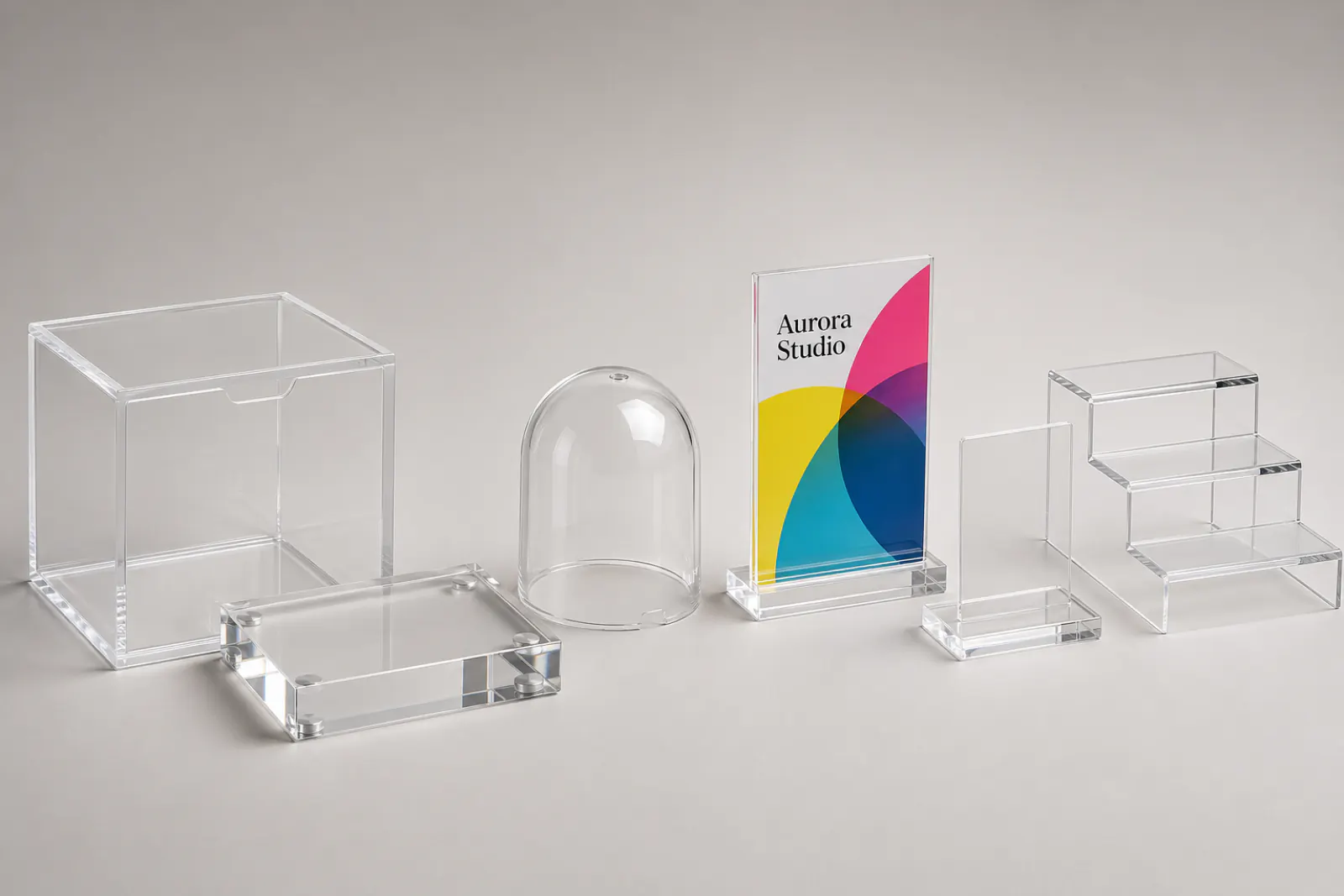

A representative 12 x 8 x 10 inch retail display case may combine laser-cut wall panels, a CNC-machined base, polished visible edges, a printed logo, joined corners, and a pre-pack inspection. The RFQ should state the edge target, ink stack, joint method, and acceptance criteria so another supplier does not quote a different finish under the same short description.

Which Acrylic Fabrication Techniques Drive Cost the Most

Each operation contributes differently to the quote. The drawing and quantity determine whether polishing length, a forming tool, print coverage, fixturing, or assembly time carries the largest share. The acrylic fabrication and customization page lists the variables to identify before pricing.

Long visible-edge runs add polishing time. Formed geometry can add a tool, while full-coverage graphics add print passes, ink, setup, and inspection. Ask for alternatives on the same drawing, such as hidden-edge construction, flat-panel assembly, or reduced print coverage, and compare the resulting finish on a sample.

For cosmetics and perfume display projects where premium edge clarity and brand-accurate color are non-negotiable, the technique stack drives the quote — not the acrylic. We spec what the application demands, then walk the buyer through the cost breakdown so the line items make sense before production starts. For a real-world example of how all six techniques combine on a premium cosmetics brief, see the acrylic cosmetic organizers with velvet inserts case study.

What This Means for Your RFQ

Read the RFQ by part and feature. “Acrylic display case, polished, with logo” leaves the edge method, print stack, joint, material grade, and acceptance criteria open. Name those items or ask each supplier to state its assumptions before you compare prices.

The cleanest RFQs I see name three things: cutting method by part (laser for thin walls, CNC for thick base), polishing method by visible edge (diamond on the perimeter, flame on curved cutouts, hidden sawn elsewhere), and decoration method with white-underlayer flag (UV print with white underlayer on clear stock for brand color). Add the use environment (indoor retail, outdoor signage, IPA-cleaned cosmetics counter) and assembly intent (permanent solvent welds, or serviceable mechanical fasteners on the access panel). That is enough for any competent fabricator to quote without follow-up, and it is enough to compare quotes apples-to-apples across suppliers.

Wetop’s 5,000 m² Shenzhen facility includes laser cutting, CNC machining, polishing, forming, printing, and assembly capabilities. The quote identifies the proposed route, any approved partner process, inspection plan, and schedule for the drawing. The acrylic thickness guide covers a key input to each process decision.

Send your drawing or photo reference plus quantity and use case to inquiry@wetopacrylic.com. We respond within 24 hours with a technique-by-technique quote and a recommendation on any ambiguous specs — including the calls where a cheaper technique combination delivers the same finished part.

For a product example, see our custom acrylic logo blocks page. A block can combine machining, cutting, decoration, bonding, and polishing according to the approved construction.
