Acrylic Thickness for Shelves — Load Math and Span Formula

The 30-second answer

Acrylic thickness for shelves and pedestals follows standard structural calculation: deflection δ = (5 × W × L³) / (384 × E × I), with E (cast PMMA modulus) at ~2,400 MPa and I (moment of inertia) proportional to thickness cubed. Production-grade safety factor is 2× on flexural strength with deflection below 1/4 of allowable at design load. Pedestal load: 30 mm for 100 lb, 40 mm for 200 lb, 50 mm + steel plate for 400 lb (box-base; cantilever runs ~25% of these). Case walls: 4-6 mm retail, 8-10 mm museum-grade. “Use 6 mm” is the wrong default 60% of the time.

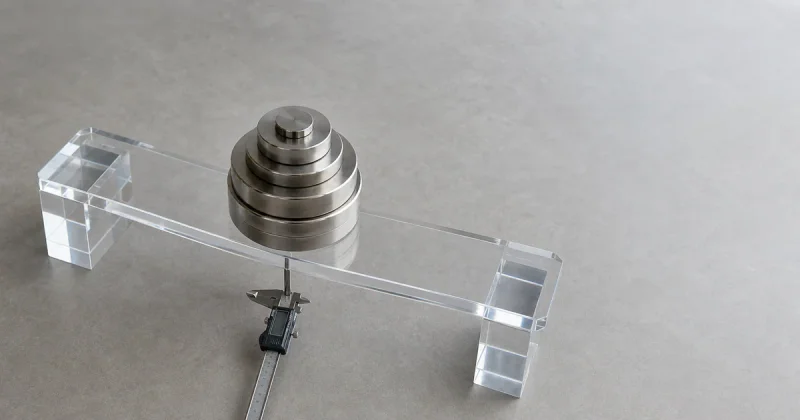

“Use 6 mm” doesn’t survive a load test. The same 6 mm cast PMMA shelf passes a comfortable distributed load on a 0.6 m span and visibly flexes under the same load on a 1.0 m span — same material, same thickness, the geometry decides. That’s the gap between a thickness rule of thumb and a thickness spec. The five sections below cover the formula, the safety-factor reasoning, and where the breakpoints fall on common applications.

---

Why “use 6 mm” is the wrong default

Most acrylic spec discussions hand-wave thickness — buyers ask for “6 mm” or “8 mm” as if those numbers map to a load case. The actual relationship: thickness drives moment of inertia (I = b × t³ / 12) which drives bending stiffness which drives load capacity. A factor of 2× thickness produces 8× moment of inertia, which means 8× load capacity at the same span and support condition.

The implication: spec by load case, not by familiar thickness. A 1.0 m unsupported acrylic shelf carrying 50 lb of evenly-distributed product needs different thickness than a 0.4 m shelf carrying 50 lb point-loaded at center. Same nominal load; different operational requirements.

For production-grade thickness selection, the workflow is: (1) identify the load case (weight, distribution, span, support condition), (2) apply the bending formula with cast PMMA modulus and the substrate’s flexural strength, (3) include 2× safety factor on flexural strength + deflection below 1/4 of allowable, (4) verify with stress-test rig on the production sample.

Span × load × thickness chart

The span formula for acrylic shelves

Standard plate bending for a simply-supported acrylic shelf with uniform load:

Deflection at center: δ = (5 × W × L³) / (384 × E × I)

Where:

• δ = deflection in meters (or inches)
• W = total load in newtons (or pounds-force)
• L = span in meters (or inches)
• E = elastic modulus (cast PMMA = ~2,400 MPa = 350,000 psi)¹
• I = moment of inertia (b × t³ / 12 for rectangular cross-section, where b = width and t = thickness)

Maximum bending stress: σ = (3 × W × L) / (2 × b × t²)

Where σ = stress at the bottom-center of the shelf. Production-grade target: σ below 50% of cast PMMA flexural strength (~110 MPa = 16,000 psi). 50% threshold provides 2× safety factor against immediate failure and protects against long-term creep deflection.

Worked example. Retail product display shelf: 800 mm span, simply supported, 200 mm wide, carrying 5 kg (49 N) of evenly-distributed cosmetic products. Trying 6 mm thickness:

• I = 0.200 × (0.006)³ / 12 = 3.6 × 10⁻⁹ m⁴
• δ = (5 × 49 × 0.800³) / (384 × 2.4 × 10⁹ × 3.6 × 10⁻⁹) = 7.6 mm

7.6 mm of deflection at the spec’d load is too much — it’s roughly 1% of span, vs the production-grade target of 0.25% (= 2 mm at 800 mm span).

Trying 10 mm thickness:

• I = 0.200 × (0.010)³ / 12 = 1.67 × 10⁻⁸ m⁴ (= 4.6× larger than 6 mm)
• δ = 7.6 / 4.6 = 1.65 mm — well below the 2 mm target

10 mm cast PMMA is the right thickness for this load case. 6 mm wouldn’t have failed but would have been operationally inadequate for the deflection target.

Pedestal load math at 100 / 200 / 400 lb

Pedestal load capacity scales differently from shelf load because the load path is in compression (along the column) rather than bending. Box-base pedestals (4 walls forming a closed box) carry 3-4× the load of cantilever pedestals (single-leg) at the same wall thickness because compression distributes uniformly across the box section.

100 lb pedestal load. 30 mm cast PMMA box-base at 1.0 m height. Compression stress at the base: ~5 MPa, well below cast PMMA’s compressive strength of ~110 MPa (per ASTM D695²). Safety factor 22× on compression. Wall buckling and base-corner stress concentrations are the actual failure modes at this scale.

200 lb pedestal load. 40 mm cast PMMA box-base at 1.0 m height, OR 30 mm box-base with reinforced base plate (6 mm steel insert at base). The reinforced 30 mm option uses less acrylic and lower unit cost than 40 mm box-base.

400 lb pedestal load. 50 mm cast PMMA box-base at 1.0 m height with steel reinforcement plate (8-10 mm steel at base). The pedestal design starts to require more rigorous structural calculation at this load — anti-tip anchor to floor, base footprint at least 40% of pedestal height for free-standing units (per ASTM C1532 anchorage standard for sculptural and pedestal installations).

Cantilever pedestals. Single-leg pedestals fail at roughly 25% of box-base capacity at the same nominal thickness because the bending stress concentrates at the cantilever joint. 30 mm cantilever handles roughly 25 lb safely (vs 100 lb box-base). 50 mm cantilever handles roughly 100 lb safely (vs 400 lb box-base). Cantilever is a design choice for visual lightness, not for load capacity.

For deeper context on pedestal load engineering, see our acrylic pedestals 200 lb load engineering guide.

Case wall thickness for retail vs museum-grade

Case wall thickness has different design objectives in retail vs museum-grade applications.

Retail case walls (handling load dominant). 4-6 mm cast PMMA covers most retail handling cases. The wall sees occasional impact loads from drops, bumps during stocking, and accidental contact during cleaning. Cast PMMA at 4-6 mm thickness handles these loads with 2-3× safety factor on Izod impact strength. Above 6 mm, additional thickness doesn’t add operational protection at typical retail handling loads.

Museum-grade case walls (artifact protection dominant). 8-10 mm cast PMMA is the museum baseline. The wall thickness is driven by three considerations beyond simple impact: stress isolation between the case interior and exterior environment, sealed-environment structural integrity (gasket compression doesn’t deflect the wall), and bonded-corner construction load capacity. Bonded corners on 8-10 mm walls carry 240-360 N of impact load before failure (vs 100-160 N on 4-6 mm walls).

Stress-relief cycle on museum-grade. After bonding, a controlled-temperature dwell at 70°C for 4-6 hours releases residual stress in the bond seam. This cycle is non-negotiable for museum-grade construction because oversize bond seams without stress relief develop micro-cracking within 24 months of operation. Retail cases can usually skip the stress-relief cycle because retail case sizes don’t accumulate enough stress to fail in operational lifetime.

Long-term creep deflection — why 2× safety factor is non-negotiable

The bending formula gives instantaneous deflection. Cast PMMA under sustained load also shows creep deflection — gradual additional deflection that accumulates over months and years. Creep is the failure mode that turns a shelf which “looks fine on day 1” into a sagging shelf at year 3, and it’s the reason production-grade design uses 2× safety factor on flexural strength rather than the 1.3-1.5× you might see in less-conservative spec.

The creep math: cast PMMA at room temperature under 30-50% of its flexural strength shows creep deflection of roughly 15-25% of the initial deflection over 5 years. Below 30% loading, creep is negligible (<5% over 5 years). Above 50% loading, creep accelerates aggressively — a shelf at 70% of flexural strength will roughly double its deflection over the same period.

The implication for thickness selection: design to keep operating stress below 50 MPa (= 50% of cast PMMA’s ~110 MPa flexural strength) with deflection at ≤25% of allowable. That keeps total long-term deflection — initial elastic + 5-year creep — within the deflection tolerance the application can accept.

The other long-term failure mode is environmental stress cracking under contact with cleaning agents containing solvents like isopropanol, acetone, or alcohol-based glass cleaners. Cast PMMA exposed to ammonia-based cleaners (Windex, generic glass cleaner) under sustained tensile stress develops surface micro-cracks within 6-12 months. The fix is operational, not structural: spec ammonia-free cleaners on any retail or museum case made of acrylic, and document the cleaning policy in the product manual that ships with each case.

Multi-shelf and nested structures — when the spec changes

Stand-alone shelves and pedestals are well-modeled by the standard bending formula. Multi-shelf and nested structures behave differently because the shelf-to-shelf interaction either reinforces or weakens the assembly compared to single-shelf math.

Multi-shelf wall units (5-shelf retail tower). Each shelf is independently spec’d to its load case, but the assembly’s overall stability depends on the connecting verticals. Production-grade design: vertical wall thickness should be at least 80% of the thickest shelf in the unit (a 10 mm-shelf tower needs ≥8 mm verticals). Below this ratio, the verticals deflect under shelf load transfer and the whole tower develops visible lean within 12-18 months.

Nested case construction (case-within-a-case for archival). Inner cases can be thinner than the outer because the outer protects from impact and the inner only carries dust-seal and artifact-positioning load. Typical archival nested construction: 8-10 mm outer + 4-6 mm inner. The cost saving on the inner panel is meaningful at scale, and the inner thickness is structurally adequate because the outer absorbs impact.

Stacked-cube modular display. Modular cube displays where each cube sits on the cube below need wall thickness sized for the cumulative stack load, not the single-cube load. A 4-cube stack with 5 kg of product per cube means the bottom cube wall carries 4× the load of a single cube. Spec the wall thickness for the bottom cube and run all cubes at the same thickness for visual continuity (or cost-engineer the upper cubes thinner, accepting that the stack must always rotate identical cubes from top to bottom over time).

Cantilever shelf-and-bracket assemblies. When an acrylic shelf is supported by metal brackets at the wall, the load transfers from shelf into brackets at the bracket-shelf contact. The contact point sees concentrated stress that the bending formula doesn’t capture directly. Production-grade design: spread the bracket contact area to ≥30 mm × 30 mm with a soft EPDM or felt pad between the bracket and the shelf surface. Without this, point loading at the bracket contact produces visible compression marks on the shelf within 6-12 months of use.

When NOT to use thicker — optical haze + cost without payoff

Going thicker than the structural calc requires creates two subtle problems.

Optical haze through-section. Cast PMMA holds 1.1% haze at the cut edge across all thicknesses (per ASTM D1003). Through-section haze (looking through the substrate at angle) increases slightly with thickness: 1.1% at 6 mm, 1.4% at 25 mm, 1.8% at 50 mm. For displays where the substrate is viewed through-section (museum cases, optical-grade applications), the haze increase is visible under directional lighting and degrades the visual quality.

Material cost scales linearly; finishing scales sub-linearly. A 50 mm cast PMMA panel costs 8.3× more in raw substrate than 6 mm. Finishing labor (CNC, polishing, bonding) scales roughly with surface area, not thickness, so finishing cost only grows ~1.3× from 6 mm to 50 mm. Net: total unit cost grows roughly 4-5× from 6 mm to 50 mm. If the spec’d load only requires 25 mm with 2× safety factor, going to 50 mm adds ~50% of unit cost without operational benefit.

Spec to load case, not to familiar thickness. A buyer who specifies 50 mm because “thicker is better” typically gets a case that’s 2-3× over-engineered, costing more than necessary, and slightly hazier through-section than needed. The right approach is to specify the load case and let the structural calc determine the thickness.

For retail VM engineers or museum exhibit designers spec’ing load-bearing acrylic, browse our acrylic displays catalog for the load-bearing form factors most often spec’d from this calc, and the jewelry boutique mirror-acrylic pedestal case study for a real load-bearing pedestal program. Then send the brief over to our team — we’ll review the load case, run the bending formula with the substrate properties, and recommend thickness with structural calc documentation. For the broader thickness context, see our acrylic thickness guide and acrylic shelves buyer guide for retail.

Footnotes

1. ASTM International. ASTM D790 — Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics. https://www.astm.org/d0790-17.html ↩

2. ASTM International. ASTM D695 — Standard Test Method for Compressive Properties of Rigid Plastics. https://www.astm.org/d0695-23.html ↩
