Mahjong @ Wetop · Manufacturing to your brief
Custom acrylic mahjong racks and magnetic pushers start at 50 complete sets per design. Choose from the published 20, 18 and 14-inch options, then confirm usable ledge dimensions against your actual tiles before production.
A rack’s advertised overall length is not its usable tile ledge. End stops, connections and the profile take up space. Give us your tile width, thickness and the row you want to accommodate; we confirm the usable length on the drawing.
14 × 23 mm = 322 mm of tiles.
14 × 25 mm = 350 mm of tiles.
These are tile-row lengths, before handling space and end structures. They do not prove that a nominal 14-inch rack will fit. Fourteen tiles is an example for checking dimensions, not a rule for every game state.

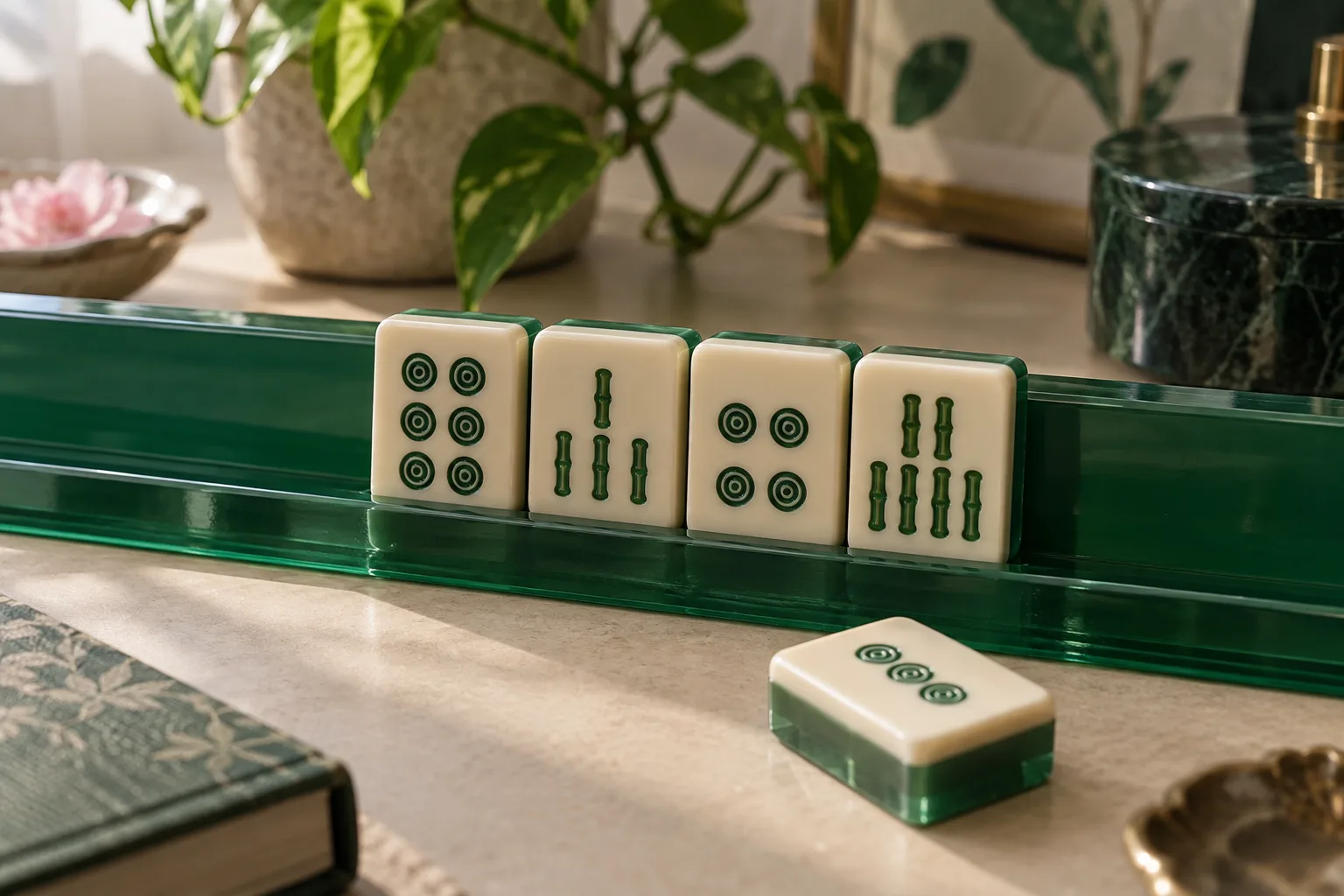

Also check ledge depth, back support and the exposed-tile area. A tile can fit along the rack yet sit badly across its depth.
One complete set means four racks and four magnetic pushers, enough for one table. The published mahjong rack minimum is 50 sets per design: 200 racks plus 200 pushers. Changing length does not remove that minimum.
The longest of the three published options. Check its footprint against your mat and its packed length against your bag.
A shorter option when storage or table space matters. Confirm the same tile-fit checks before selecting it.
A compact option requiring particular care with larger tiles. Confirm usable ledge length, tile support and your intended layout.
For a shaped profile, a different connection, rack-only or pusher-only supply, describe the requirement in your brief. We confirm feasibility, the counting unit and price separately; the magnetic combo price is not a quote for every custom construction.
FOB Shenzhen, from the approved price book. Prices below cover the listed magnetic rack-and-pusher format; freight, bags and changes to construction are separate.
| Overall length | 50+ sets | 100+ sets | 500+ sets |
|---|---|---|---|
| 20 in | USD 40.00 | USD 38.00 | USD 35.00 |
| 18 in | USD 38.00 | USD 36.00 | USD 33.00 |
| 14 in | USD 36.00 | USD 34.00 | USD 31.00 |
A paid sample is USD 200 for four racks and four pushers, courier included. Sample fees are separate and are not credited toward production.
Tile height × width × thickness; intended row length; rack length; number of complete sets. Include your existing rack drawing if compatibility matters.
Choose a stock sheet code or send a color target. Name each color in the four-player set. Supply finished artwork and its intended position.
Tell us whether the set must fit an existing case or bag. Confirm the loaded dimensions, exposed-tile needs and whether pushers detach for packing.
Colors can coordinate with your tile layers, but a thin translucent rack and a thick tile stack may look different under the same light. Approve them together using the physical color route; an exact visual match is not guaranteed.
Fit before finish
Use the clear space between end stops, not only the outside rack length. Multiply your tile width by the number you want to display, then allow clearance.
Example: 14 tiles × 30 mm = 420 mm before clearance. A 14 in rack is only 355.6 mm overall, so it cannot hold that row.
The rack supports your hand. A detachable pusher moves the wall. Confirm attachment position, magnet alignment and clearance on the agreed structure.
Check stability, tile visibility, finger clearance, magnetic retention and the fit inside the bag or case. A short empty rack is not proof that full-size tiles fit.
The sample makes these choices inspectable. A promotional image cannot establish a dimension or prove the strength of a connection.
Before you request a quote
The quoted unit contains four racks and four pushers, with fabrication, polished edges and magnetic connections. Compare the complete eight-piece scope, material, finish and freight terms when comparing prices. A single retail rack price is a different unit.
Not automatically. Fourteen tiles that are 25 mm wide need 350 mm before clearance, while 14 inches is 355.6 mm overall. End structures and connection details reduce usable space. Send the tile dimensions so we can confirm a workable drawing before you select this length.
Our custom production minimum is 50 complete sets per design. One paid development sample is available for a production project at USD 200 for four racks and four pushers, courier included; it is not a retail stock program.
Yes, we can plan them together using stock sheet codes or a custom color target. Approve the physical materials together because thickness and transparency affect appearance. We do not promise a 100% visual match.
No. Racks and pushers are a separate line item with their own quantity and minimum. State the number of complete four-player sets you need, even when they ship with tiles.
We can review and sign a reasonable NDA. We do not disclose or reuse your artwork. An agreement should distinguish your confidential design from common manufacturing methods; ordinary industry processes cannot become exclusive to one buyer. Send proposed terms for review before sharing restricted files.
Send your tile dimensions, rack length, colors and quantity. You can order accessories on their own.
